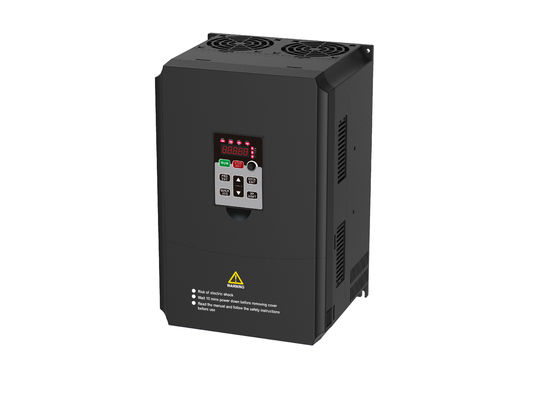

Output 7A 50Hz 60Hz Variable Frequency Drives 1.5 Kw VFD VSD
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $90 |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, Western Union, Western Union, T/T |
|
Detail Information |
|||
| Type: | DC/AC Inverters | Output Type: | Single |
|---|---|---|---|
| Output Current: | 7A | Output Frequency: | 50/60Hz |
| Size: | 173*94*146 Mm | Weight: | 1.4 Kg |
| Input Current: | 14A | Frequency Range: | ±5% (47.5 ~ 63Hz) |
| Nominal Capacity: | 3KVA | Applicable Motor Output (HP): | 2 HP |
| High Light: | 60Hz Variable Frequency Drives,7A Variable Frequency Drives,1.5 Kw VFD |
||
Product Description
Output 7A 50Hz 60Hz Variable Frequency Drives 1.5 Kw VFD VSD
Motor Drives 50 60 Hz Frequency Converter Inverter 1.5kw VFD VSD
Astro Variable Frequency Drive
0.75KW ~ 22KW
In-Built dynamic braking unit
Models Overview
|
MODEL |
Nominal Capacity (KVA) |
Input Current (A) |
Output Current (A) |
Applicable Motor Output (KW) |
|
Single Phase 220V 50/60Hz |
||||
|
Astro 0.75G-S2 |
1.5 |
8.2 |
4 |
0.75 |
|
Astro 1.5G-S2 |
3 |
14 |
7 |
1.5 |
|
Astro 2.2G-S2 |
4 |
23 |
9.6 |
2.2 |
|
3-Phase 380V 50/60Hz |
||||
|
Astro 0.75G-T4 |
1.5 |
3.4 |
2.1 |
0.75 |
|
Astro 1.5G-T4 |
3 |
5 |
3.8 |
1.5 |
|
Astro 2.2G-T4 |
4 |
5.8 |
5.1 |
2.2 |
|
Astro 3.7G-T4 |
6 |
10.5 |
9 |
3.7 |
|
Astro 5.5G-T4 |
9 |
14.6 |
13 |
5.5 |
|
Astro 7.5G-T4 |
11 |
20.5 |
17 |
7.5 |
|
Astro 11G/15P-T4 |
17 |
26 |
25 |
11 |
|
Astro 15G/18.5P-T4 |
21 |
35 |
32 |
15 |
|
Astro 18.5G/22P-T4 |
24 |
38.5 |
37 |
18.5 |
|
Astro 22G/30P-T4 |
30 |
46.5 |
45 |
22 |
Control Terminal Location and Function Description
|
Category |
Terminal label |
Name |
Description |
|
Communication |
RS485A |
RS485 COM port |
RS485 differential signal positive terminal |
|
RS485B |
RS485 differential signal negative terminal |
||
|
Analog input |
AI1 |
Analog input terminal 1 |
Analog voltage/current input |
|
Analog output |
AO1 |
Analog output terminal 1 |
Analog voltage/current output |
|
Digital input |
DI1 |
Digital input terminal 1 |
Normal digital input |
|
DI2 |
Digital input terminal 2 |
Normal digital input |
|
|
DI3 |
Digital input terminal 3 |
Normal digital input |
|
|
DI4 |
Digital input terminal 4 |
Normal digital input/high frequency pulse input |
|
|
COM |
Digital input common terminal |
Digital input common terminal |
|
|
Digital output |
DO1 |
Digital output terminal 1 |
Normal digital output/high frequency pulse output |
|
Power supply |
10V |
+10V power supply |
Provide +10V power supply |
|
GND |
+10V power ground |
Reference ground for analog signal and +10V power supply |
|
|
Others |
RA/RC |
Relay output |
|
|
KEYBOARD |
External keyboard |
|
Power Recommended Power Cable Selection Guide
|
MODEL |
Recommended cable size (mm²) |
Set Screws |
||||
|
RST |
PE |
P1 (+) |
PB (+) |
Screw spec |
Torque(Nm) |
|
|
UVW |
(-) |
|||||
|
Astro 0.75G-S2 |
1.5 |
1.5 |
1-4 |
1-4 |
M3 |
0.8 |
|
Astro 1.5G-S2 |
2.5 |
2.5 |
1-4 |
1-4 |
M3 |
0.8 |
|
Astro 2.2G-S2 |
2.5 |
2.5 |
1-4 |
1-4 |
M3 |
0.8 |
|
Astro 0.75G-T4 |
1.5 |
1.5 |
1.5 |
1.5 |
M4 |
1.2~1.5 |
|
Astro 1.5G-T4 |
1.5 |
1.5 |
1.5 |
1.5 |
M4 |
1.2~1.5 |
|
Astro 2.2G-T4 |
2.5 |
2.5 |
2.5 |
2.5 |
M4 |
1.2~1.5 |
|
Astro 3.7G-T4 |
2.5 |
2.5 |
2.5 |
2.5 |
M4 |
2~2.5 |
|
Astro 5.5G-T4 |
4 |
4 |
2.5 |
2.5 |
M5 |
2~2.5 |
|
Astro 7.5G-T4 |
6 |
6 |
4 |
2.5 |
M5 |
2~2.5 |
|
Astro 11G/15P-T4 |
10 |
10 |
6 |
4 |
M5 |
2~2.5 |
|
Astro 15G/18.5P-T4 |
10 |
10 |
10 |
4 |
M5 |
2~2.5 |
|
Astro 18.5G/22P-T4 |
16 |
16 |
10 |
6 |
M6 |
4~6 |
|
Astro 22G/30P-T4 |
16 |
16 |
10 |
6 |
M6 |
4~6 |
