19 Inch 2400w 3000va Small Ups Power Supply

19 Inch 2400w 3000va Small Ups Power Supply

Product Details:

Place of Origin: SHENZHEN
Brand Name: ZGD
Certification: CE
Model Number: C1KR~C6KRS

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: USD 140~399
Packaging Details: Carton packaging
Delivery Time: 7~15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sets per month
Get Best Price Contact Now

Detail Information

Output Voltage: 200/208/220v/230v/240VAC Type: On-line,rack Mount Online Ups
Application: Networking,Telecommunications,manufacture,education Etc. Phase: Single/Three Phase
Display: LCD+LED Capacity: 1 ~ 10KVA
Wave Form: Pure Sine Wave Certification: CE,ISO9001
Battery Type: Lead Acid Battery Output Power Factor: 0.8
High Light:

3000va Ups Power Supply Rack Mount


19 Inch 3000va rack mount ups


2400w Ups Power Supply Rack Mount

Product Description

19 Inch Small Rack Mount UPS 1kva 2kva 3kva 6kva High Frequency Online Pure Sine Wave UPS


Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues


High Input power factor

Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer


Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion


Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system


Capacity VA/W 1kVA/800W 2kVA/1.6kW 3kVA/2.4kW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave



<2%(Linear Load)
<7%(None-Linear Load)

Over load


1Min@105%~125%Rated Load

30Sec.@125%~150%Rated Load

0.5Sec.@>150%Rated Load

Efficiency AC/AC Mode 88% 89% 90%
DC/AC Mode 86% 87% 88%




Rated Battery Voltage













Battery Capacity



External Battery Depends



External Battery Depends



External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current

Standard Model with Internal Battery:1A

Long Backup Time Model :4A

Physical Chassis Style Rack-Mounted
Rack Dimension

1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)

3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery

Weight (kg) 13 8.5 18.5 11.5 21.9 12
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status


Communication Interface

1. RS232 PORT
Optional Extension Card
  • NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
  • MODBUS Card,
  • USB Card
  • Relay Card (Needs assembly according to order request before shipping

Operating Environment


Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters

19 Inch 2400w 3000va Small Ups Power Supply 019 Inch 2400w 3000va Small Ups Power Supply 1

19 Inch 2400w 3000va Small Ups Power Supply 219 Inch 2400w 3000va Small Ups Power Supply 319 Inch 2400w 3000va Small Ups Power Supply 419 Inch 2400w 3000va Small Ups Power Supply 519 Inch 2400w 3000va Small Ups Power Supply 619 Inch 2400w 3000va Small Ups Power Supply 7


19 Inch 2400w 3000va Small Ups Power Supply 8

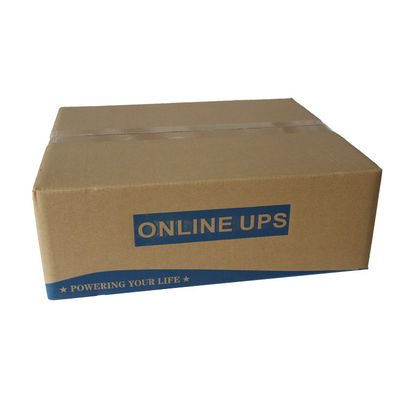

Packing & Delivery19 Inch 2400w 3000va Small Ups Power Supply 919 Inch 2400w 3000va Small Ups Power Supply 10

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
