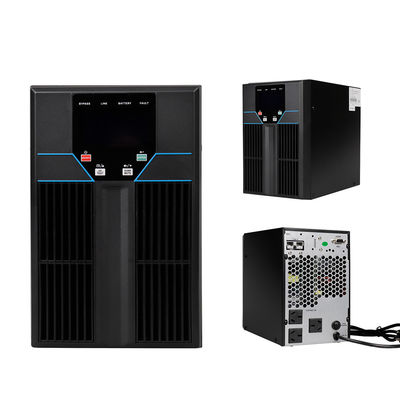

High Frequency 1KVA 800W Smart UPS System Online Single Phase
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Model Number: | ZGD-C3KS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $140.00/Sets 1-9 Sets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3months-1year | Phase: | Single Phase |
|---|---|---|---|
| Weight: | 6.3kg | Type: | On-line |
| Product Name: | Online UPS Systems | Capacity: | 1KVA |
| Wave Form: | Pure Sine Wave | Battery Type: | Lead Acid Battery |
| Input Voltage: | 100-240VAC | Display: | LCD |
| Products: | Single Phase Online UPS | ||
| High Light: | Smart UPS,Smart UPS,1KVA UPS |
||
Product Description
High Frequency 1KVA 800W Smart UPS System Online Single Phase
High Frequency ups 1KVA/800W Smart Ups Data Center Ups System
Product presentation:
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
|
Model |
C1K |
C1KS |
C2K |
C2KS |
C3K |
C3KS |
|
Capacity |
VA/W |
1kVA/800W |
2kVA/1.6kW |
3kVA/2.4kW |
||||||||
|
Topology |
Double Conversion Online UPS |
|||||||||||
|
Phase |
Single Phase Input Single Phase Output |
|||||||||||
|
Mains Input |
Wiring |
L/N+PE |
||||||||||
|
Rated Voltage |
208/220/230/240VAC |
|||||||||||
|
Voltage Range |
90~300VAC |
|||||||||||
|
Frequency Range |
40Hz-70Hz |
|||||||||||
|
Input Power Factor |
≥0.99 |
|||||||||||
|
AC Output |
Wiring |
L/N+PE |
||||||||||
|
Output Voltage |
208/220/230/240VAC |
|||||||||||
|
Voltage Regulation |
±1% |
|||||||||||
|
Output Frequency |
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) |
|||||||||||
|
Waveform |
Pure Sine Wave |
|||||||||||
|
Distortion (THDV%) |
<2%(Linear Load) |
|||||||||||
|
<7%(None-Linear Load) |
||||||||||||
|
Over load capability |
1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
|||||||||||
|
Efficiency |
AC/AC Mode |
88% |
89% |
90% |
||||||||
|
DC/AC Mode |
86% |
87% |
88% |
|||||||||
|
Battery & Charge |
Rated Battery Voltage ① |
24VDC Internal |
36VDC External |
48VDC Internal |
72VDC External |
72VDC Internal |
96VDC External |
|||||
|
Battery Capacity |
12V/7AH |
External Battery Depends |
12V/7AH |
External Battery Depends |
12V/7AH |
External Battery Depends |
||||||
|
Backup Time |
>6mins @ Half Load |
>6mins @ Half Load |
>6mins @ Half Load |
|||||||||
|
Charging Current |
Standard Model with Internal Battery:1A Long Backup Time Model :4A |
|||||||||||
|
Physical |
Chassis Style |
RACK / Tower (separated) |
||||||||||
|
Tower Dimension ② |
1KS: 145(W)X220(H)x250(D)mm 1K, 2KS: 145(W)X220(H)x318(D)mm 2K:145(W)X220(H)x390(D)mm 3K/3KS: 190(W) x 318(H) x 368(D)mm |
|||||||||||
|
Rack Dimension |
3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) |
|||||||||||
|
Weight (kg) |
8.9 |
4.2 |
14 |
5.9 |
21.6 |
8.3 |
||||||
|
HMI |
LCD DISPLAY |
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status |
||||||||||
|
Standards COMMUNICATION |
1. RS232 PORT 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown |
|||||||||||
|
Optional Extension Card |
CMC MODBUS Card, USB Card, Relay Card (Needs assembly according to order request before shipping) |
|||||||||||
|
Operating Environment Endurance |
Temperature range |
-10~50oC |
||||||||||
|
Relative Humidity |
0-98%(Non-condensing) |
|||||||||||
|
Acoustics Noise |
<55dB @ 1 meters |
|||||||||||
