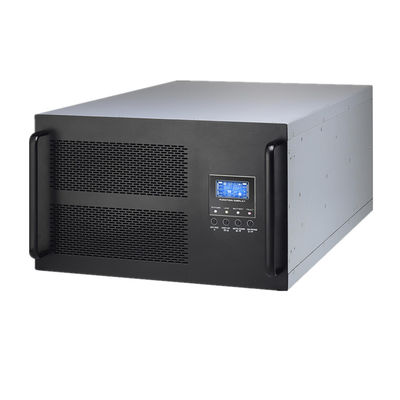

Rohs UL CE Certification 30KW Rack Mount UPS 30kva Energy Saving

Product Description

3 Phase High Frequency Online Rack Mount 30kva Pure Sine Wave Ups Power Without battery

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Pure Sine Wave Output

The UPS provides Pure Sine Wave power output for sensitive equipment that requires smoother and cleaner input source. The Pure Sine Wave source ensures system is operating more efficiently to reduce power consumption and save electricity costs.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function to regulate low voltages and over voltages when incoming utility power has fluctuations, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Specification

MODEL		15KL	20KL	30KL
CAPACITY*		15KVA / 15KW	20KVA / 20KW	30KVA / 30KW
INPUT
Voltage Range	Low Line Loss	70 VAC(Ph-N) ± 3 % at 50% Load
		88 VAC(Ph-N) ± 3 % at 100% Load
	Low Line Comeback	Low Line Loss Voltage + 5V
	High Line Loss	156 VAC(L-N) ± 3 % at 50% Load
		146 VAC(L-N) ± 3 % at 100% Load
	High Line Comeback	High Line Loss Voltage - 5V
Frequency Range		46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system
Phase		3 Phase with Neutral
Power Factor		≧ 0.99 at 100% Load
OUTPUT
Phase		3 Phase with Neutral
Output voltage		208/220VAC (Ph-Ph)
		120/127VAC (Ph-N)
AC Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Transfer Time	Line Battery	0 ms
PHYSICAL
Long-run Model	Dimension, D X W X H mm	797X438X176(4U)
	Net Weight (kgs)	42	42	45
ENVIRONMENT
Operation Temperature		0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity		<95 % and non-condensing
Operation Altitude**		<1000m**
Acoustic Noise Level		Less than 65dB @ 1 Meter	Less than 70dB @ 1 Meter	Less than 70dB @ 1 Meter
MANAGEMENT
Smart RS-232 or USB		Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser
