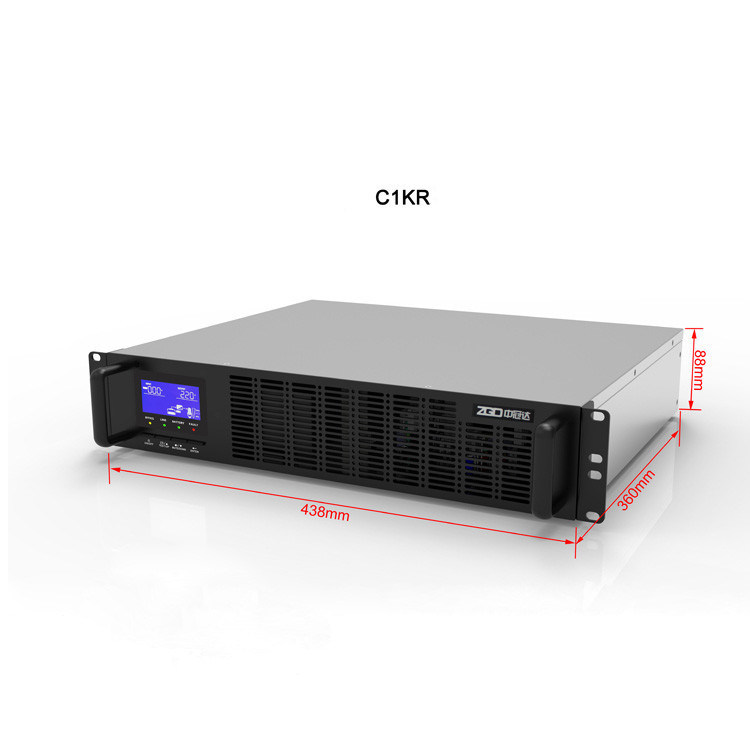

100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup

100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup

Product Details:

Place of Origin: Guangdong, China
Brand Name: ZGD
Certification: CE ISO9001
Model Number: C1KR

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: $140.00/Sets 1-19 Sets
Packaging Details: Carton packaging
Delivery Time: 7~15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Warranty: 3months-1year Phase: Single Phase
Protection: Lightning Application: Networking
Product Name: Rackmount Online UPS Battery Type: Sealed Lead Acid Battery
Appplication: Computerized Instruments Input Voltage: 100-240VAC
Output: 220/230/240VAC/50HZ/60HZ Port: Shenzhen Or Guangzhou
High Light:

1000va Rack Mount UPS

,

240VAC Rack Mount UPS

,

1000va Single Phase UPS

Product Description

100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup














Pure Sine Wave Rack Mount UPS Power Supply 1kva High Frequency online UPS


High Input power factor

Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer

Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion

Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system


Specification

Model

C1KR

C1KRS

C2KR

C2KRS

C3KR

C3KRS

Capacity

VA/W

1kVA/800W

2kVA/1.6kW

3kVA/2.4kW



Topology

Double Conversion Online UPS



Phase

Single Phase Input Single Phase Output

Mains Input

Wiring

L/N+PE



Rated Voltage

208/220/230/240VAC



Voltage Range

90~300VAC



Frequency Range

40Hz-70Hz



Input Power Factor

≥0.99

AC ut

Wiring

L/N+PE



Output Voltage

208/220/230/240VAC



Voltage Regulation

±1%



Output Frequency

50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)



WaveforOutpm

Pure Sine Wave



Distortion

(THDV%)

<2%(Linear Load)





<7%(None-Linear Load)



Over load

capability

1Min@105%~125%Rated Load

30Sec.@125%~150%Rated Load

0.5Sec.@>150%Rated Load

Battery

&

Charge

Rated Battery Voltage

24VDC

Internal

36VDC

External

48VDC

Internal

72VDC

External

48VDC

Internal

96VDC

External



Battery Capacity

12V/7AH

X2pcs

External Battery Depends

12V/7AH

x4pcs

External Battery Depends

12V/9AH

x4pcs

External Battery Depends



Backup Time

>6mins @ Half Load



>6mins @ Half Load



>6mins @ Half Load





Charging Current

Standard Model with Internal Battery:1A

Long Backup Time Model :4A

Physical

Chassis Style

Rack-Mounted



Rack Dimension

1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)

3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery



Weight (kg)

13

8.5

18.5

11.5

21.9

12

HMI

LCD DISPLAY

Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status



Standards

Communication Interface

1. RS232 PORT



Optional Extension Card

  • NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown

  • MODBUS Card,

  • USB Card

  • Relay Card (Needs assembly according to order request before shipping

Operating Environment

Endurance

Temperature range

-10~50oC



Relative Humidity

0-98%(Non-condensing)



Acoustics Noise

<55dB @ 1 meters

100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 0100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 1100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 2100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 3100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 4100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 5


Certifications
100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 7
Packing & Delivery
100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 8
100VAC 240VAC 1000va Rack Mount UPS Single Phase Battery Backup 10
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
