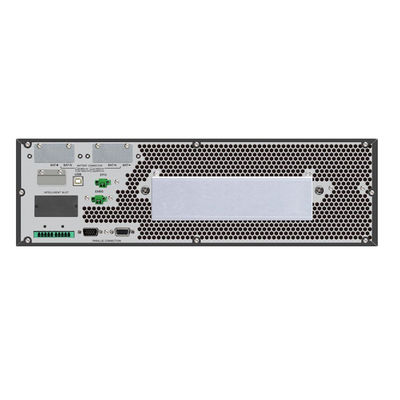

Networking 380VAC 40 Kva Ups 3 Phase / 40kw Ups Without Battery

Product Description

3 Phase High Frequency Online Rack Mount 40kva Pure Sine Wave Ups Power Without battery

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Pure Sine Wave Output

The UPS provides Pure Sine Wave power output for sensitive equipment that requires smoother and cleaner input source. The Pure Sine Wave source ensures system is operating more efficiently to reduce power consumption and save electricity costs.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function to regulate low voltages and over voltages when incoming utility power has fluctuations, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Specification

MODEL		30KL	40KL	60KL
CAPACITY*		30KVA / 30KW	40KVA / 40KW	60KVA / 60KW
INPUT
Voltage Range	Low Line Loss	110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load
	Low Line Comeback	Low Line Loss Voltage + 10V
	High Line Loss	300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load
	High Line Comeback	High Line Loss Voltage - 10V
Frequency Range		46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system
Phase		3 Phase with Neutral
Power Factor		≧ 0.99 at 100% Load
OUTPUT
Phase		3 Phase with Neutral
Output voltage		360/380/400/415VAC (Ph-Ph)
		208*/220/230/240VAC (Ph-N)
AC Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Transfer Time	Line Battery	0 ms
	Inverter Bypass	0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
	Inverter ECO	<10 ms
BATTERY
Long-run Model	Type	Depending on applications
	Numbers	32 ~ 40 (adjustable)
	Charging Current(max.)	1.0~12.0A ±10% (Adjustable)	1.0~16.0A ±10% (Adjustable)	1.0~18.0A ±10% (Adjustable)
	Charging Voltage	+/- 13.65 VDC * N ± 1% (N = 16~20)
PHYSICAL
Long-run Model	Dimension, D X W X H mm	797X438X176(4U)
	Net Weight (kgs)	42	42	45
MANAGEMENT
Smart RS-232 or USB		Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser

Certifications

Packing & Delivery

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
