Product Details:

Place of Origin: Guangdong, China
Brand Name: ZGD
Certification: CE ISO9001
Model Number: SUP1K

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: $200.00/Sets 1-19 Sets
Packaging Details: Carton packaging
Delivery Time: 7~15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Warranty: 3months-1year Phase: Single Phase
Protection: Lightning Application: Networking
Product Name: Rack Mount Online UPS Battery Type: Sealed Lead Acid Battery
Appplication: Computerized Instruments Input Voltage: 100-240VAC
Output: 220/230/240VAC/50HZ/60HZ Port: Shenzhen Or Guangzhou
High Light:

1KVA Lithium Battery Ups Backup

,

1KVA 120v Ups Power Supply

,

800W 120v Ups Power Supply

Product Description

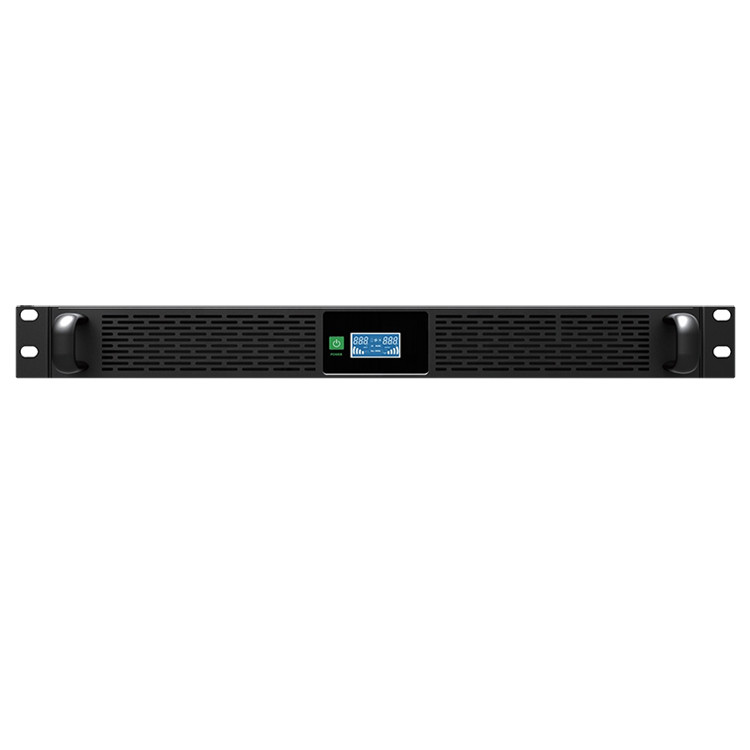

Small High Frequency Pure Sine Wave Rack Mount UPS 1KVA Lithium Battery Li Ion UPS



Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply

Li-ion Battery Powered

Provide up to 3x backup time in 50% demension, comparing with regular Lead-acid UPS product

Li-ion Battery Charger

Constant current , Contant voltage, Floating, Turn-Off 4 state charger for Li-ion battery , open to customerize the logical behavior for customer- specified battery pack

Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life.

Best Loading Capability

Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting , Selectable voltage , perfectly match all kind of application

Specification









Model 1K 1KS
Power rating VA/W 1kVA/800W
TOPOLOGY Double Conversion Online UPS
Phase 1Ph Input / 1Phase Output





Input

Input Wiring L/N+PE
  Input voltage range VLine-Neutral: 90~300VAC
  Input frequency range 40Hz-70Hz
  Input power factor ≥0.99

Output

Output Wiring L/N+PE
  Output voltage 208/220/230/240VAC
  Output Voltage Regulation ±1%
  Output Wiring L/N+PE




Output frequency range

50/60±4Hz(Sync mode) 50/60Hz±0.1%(Fix Freq.mode)
  Output waveform Pure sine-wave
  Output Distortion (THDV%) <2%(linear load)
    <7%(non-linear load)






Overload capability

1min@105%~125%load 30S@125%~150%load

0.5S@>150%load

Efficiency AC/AC&DC/AC mode 87%







Battery and charger



Nominal Battery Voltage

48V

(Internal LiFePO Battery)

48VDC

(External Battery, According to Order)

  Battery capacity 500wH



Depends on External Battery Bank configuration





Backup time

>30min

@Full rated load


  Recharging current 1A 24V/20A OR 48V/10A
Display LED Battery/Load Level/Operating mode





HMI

Communication port RS232 standard offer


Optional Extension

Communication Card

Ethernet Port (Smartphone APP /Webpage/PC APP Access)

Dry Contact Card





Environment

Operating temperature 0~40oC
  Operating humidity 0-98%(non-condensation)
  Acoustics noise <55dB @ 1 meters



Physical

Dimension 438x44(1U)x420mm 438x44(1U)x345mm
  Net Weight 6.5kg 4kg
Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 9Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 10Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 11Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 12Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 13

Certifications
Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 15
Packing & Delivery
Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 16
Small 1KVA Lithium Battery Ups Backup / 800W 120v Ups Power Supply 18
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
