120VAC 6000W 6kva Rack Mount UPS Unit Power Supply With LCD Display

Product Description

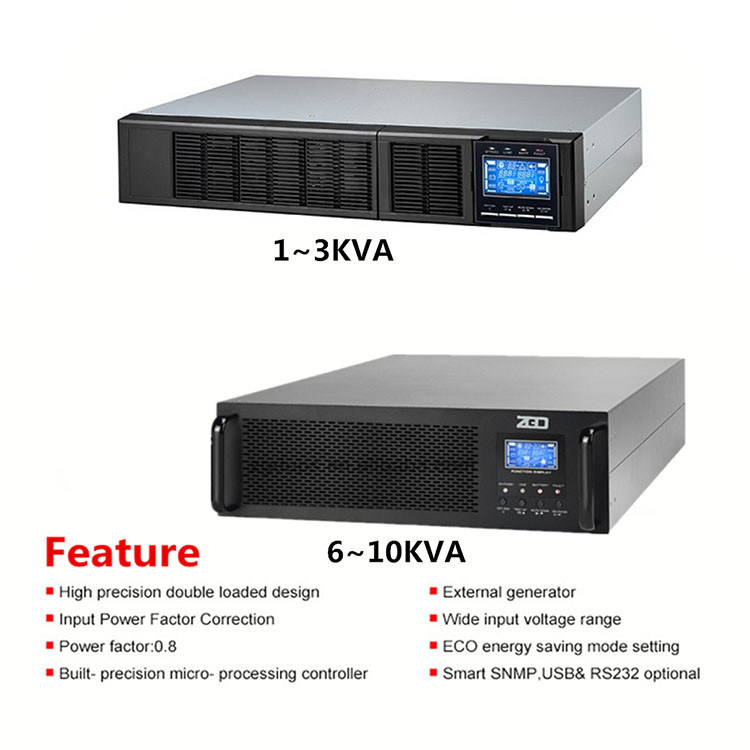

High Frequency Online Rack Mount 6KVA ~ 10KVA Pure Sine Wave Ups Power Without Battery

Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208 VAC.
When using batteries from 16-19, the unit will de-rate according to the formula: P=Prating x N/20
If the UPS is installed or used in a place where the altitude is above than 1000m,

the output must be derated one percent per 100m.

Product specifications are subject to change without further notice.

Specification

Model		ZGD 6K (L) RT
PHASE		1 phase in/ 1 phase out
CAPACITY		6000 VA/6000 W
INPUT
Nominal Voltage		208/220/230/240 VAC
Voltage Range		110-300 VAC @ 0~60% load; 140-300 VAC @ 60~80 % load; 176-300 VAC @ 80~100 % load
Frequency Range		46 ~54 Hz or 56~64 Hz
Phase
Power Factor		≧ 0.99 @ 100% Load
THDi		≦ 4% @100% load; <6% @ 50% load
OUTPUT
Output Voltage		208*/220/230/240 VAC
AC Voltage Regulation (Batt. Mode)		± 1%
Frequency Range (Synchronized Range)		46~54 Hz @ 50 Hz or 56~64 Hz @ 60 Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≦1.5% THD (Linear Load), ≦ 7 % THD (Non-linear Load)
Transfer Time	AC Mode to Batt. Mode	zero
	Inverter to Bypass	zero
Waveform (Batt. Mode)		Pure Sinewave
Overload	AC Mode	100%~110%: 10 min; 110%~130%: 1 min; >130%: 1 sec
	Battery Mode	100%~110%: 30 sec; 110%~130%: 10 sec; >130%: 1 sec
BATTERY
Standard Model	Battery Type	12V/7 Ah
	Numbers	16
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current (Max.)	1.0A
	Charging Voltage	218.4 VDC ±1%
Long-run Model	Battery Type	Depending on applications
	Numbers	16-20**
	Charging Current (Max.)	4.0A
	Charging Voltage	(13.65 VDC x battery number) ± 1%
INDICATORS
LCD Panel		UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions
PHYSICAL
Standard Model	Dimension, DxWxH (mm)	UPS Unit: 600x438x88 [2U]; Battery Pack: 695x438x88[2U]
	Net Weight (kgs)	UPS Unit: 15; Battery Pack: 48
Long-run Model	Dimension, DxWxH (mm)	600x438x88 [2U]
	Net Weight (kgs)	15
ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (Non-condensing)
Noise Level		Less than 55dB@1Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
Optional SNMP		Power management from SNMP manager and web browser

Certifications
