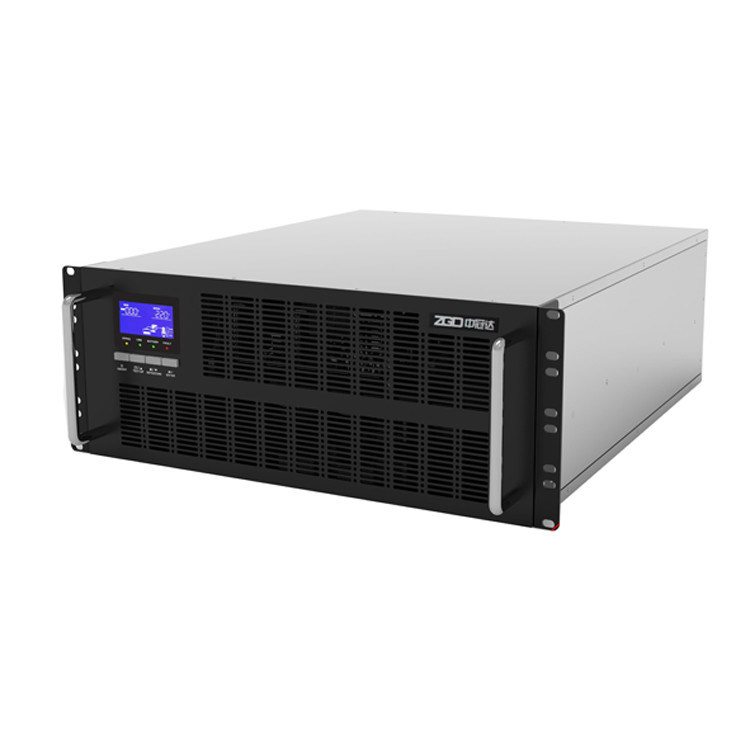

380VAC 13.5kW 3 Phase Rack Mount UPS 15KVA Online Ups Zero Transfer Time
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Certification: | CE |
| Model Number: | C15KRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $650.00/Sets 1-19 Sets |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3months-1year | Weight: | 25.6kg |
|---|---|---|---|
| Product Name: | Online UPS Systems | Capacity: | 15KVA |
| Wave Form: | Pure Sine Wave | Battery Type: | Lead Acid Battery |
| Certificate: | CE,ULRohs,GS,TUV,FC | Input Voltage: | 380VAC |
| Name: | High Frequency Ups Power | Products: | 3 Phase Online UPS |
| High Light: | 13.5kW 3 Phase Rack Mount UPS,380VAC 3 Phase Rack Mount UPS,15KVA Online Ups |
||
Product Description
3 Phase High Frequency Online Rack Mount 15KVA Pure Sine Wave Ups Power
Zero Transfer time
True Double Conversion Online UPS, provide most comprehensive protect to mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Versatile Input Phase Configuration
Work with 1phase OR 3-phases mains input, without complex setting or power derating
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment
High Input Power Factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable Design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion
Open to Customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
| Model | 3C15KRS | |||||
| Capacity | VA/W | 15kVA/13.5kW | ||||
| Topology | Double Conversion Online UPS | |||||
| Phase | Single Phase Input Single Phase Output OR 3 Phases Input Single Phase Output |
|||||
| AC Mains Input | Wiring | Single Phase L/N+PE OR | ||||
| 3 Phases (L1,L2,L3,N)/N+PE | ||||||
| Rated Voltage | 208/220/230/240VAC | |||||
| Voltage Range | Line-Neutral 90~300VAC | |||||
| Line-Line 150~500VAC | ||||||
| Frequency Range | 40Hz-70Hz | |||||
| Input Power Factor | ≥0.99 | |||||
| AC Output | Wiring | L/N+PE | ||||
| Rated Output Voltage | 208/220/230/240VAC | |||||
| Voltage Regulation | ±1% | |||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | |||||
| Waveform | Pure Sine Wave | |||||
| Distortion | <2%(Linear Load) | |||||
| (THDV%) | ||||||
| <7%(None-Linear Load) | ||||||
| Over load capability | 10Min@105%~125%Rated Load | |||||
| 60Sec.@125%~150%Rated Load | ||||||
| 0.5Sec.@>150%Rated Load | ||||||
| Battery | Rated Battery Voltage | 192/240VDC External Battery | ||||
| & | ||||||
| Charge | ||||||
| Battery Capacity | External Battery Depends | |||||
| Backup Time | ||||||
| Charging Current | Long Backup Time Model :4A / 8A (Optional) | |||||
| Physical | Chassis Style | Rack-Mounted | ||||
| Tower Dimension | 3C15kRS/3C20kRS: 438(W)x176(4U)(H)x530(D) MM | |||||
| Weight (kg) | 25.6 | |||||
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | ||||
| Standards | 1. RS232 PORT | |||||
| Communication Interface | 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown | |||||
| Optional Extension Card | 3. MODBUS Card, | |||||
| 4. USB Card | ||||||
| 5. Relay Card (Needs assembly according to order request before shipping | ||||||
| Operating Environment Endurance | Temperature range | -10~50oC | ||||
| Relative Humidity | 0-98%(Non-condensing) | |||||
| Acoustics Noise | <60dB @ 1 meters | |||||
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS
4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
