AC 380V 400V 415V Three Phase Online UPS 80 KVA For Data Centers
Product Details:
| Place of Origin: | China |
| Brand Name: | ZGDUPS |
| Certification: | CE |
|
Detail Information |
|||
| Rated Voltage: | 380/400/415 Vac Three-phase | Frequency Range: | 45-65Hz |
|---|---|---|---|
| Protection Degree: | IP20 | Efficiency Smart Mode: | Up To 98% |
| Capacity: | 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW | Power: | 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA |
| High Light: | 415V Three Phase Online UPS,80 KVA 3 Phase Online UPS,380V UPS 80 KVA |
||
Product Description

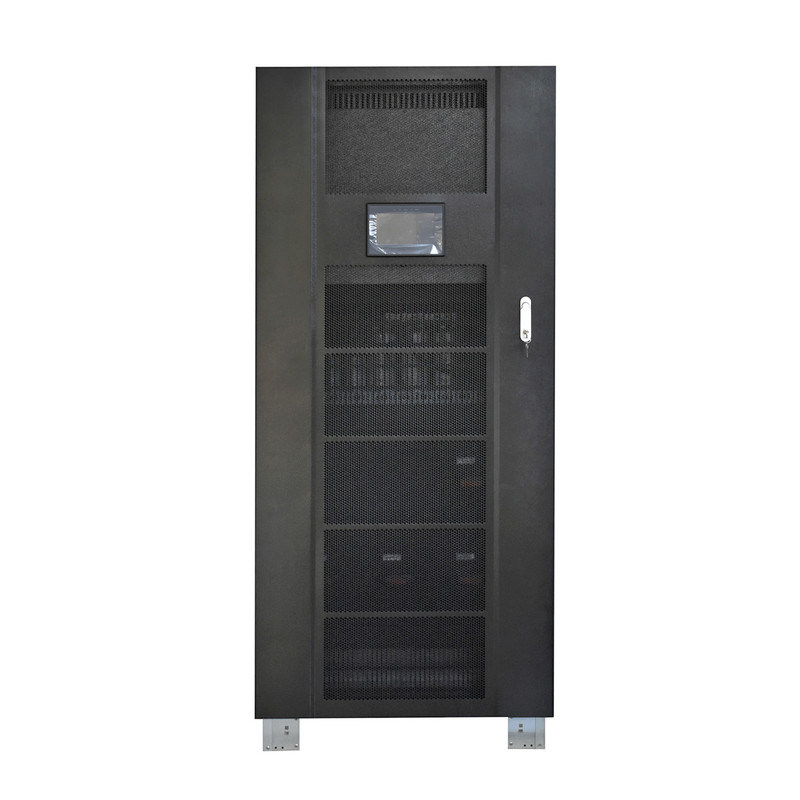

AC 380V 400V 415V Three Phase Online UPS 80 KVA For Data Centers
80KVA Low Frequency On-Line UPS 3 Phases Ups 380V/400V/415V Application Data Centers
ZGD330 provides maximum protection for vital mission-critical networks, security applications (electro- medical)and industrial applications thanks to its outstanding mechanical and electrical design.
The load is powered continuously by the inverter with a filtered, stabilized and regulated sine wave supply.
The input and output EMI filters considerably increase the immunity of the load to mains disturbances and surges.
The ZGD330 uses on-line double conversion technology (VFI) with isolation transformer on the inverter output.
The ZGD330 is supplied with Watch & Save 3000 software as standard and can be remotely monitored using the Power Net Guard system from anywhere in the world. Additional battery extension packs allow the standard battery routine to be extended up to several hours.
Application:
Servers,
Local area Network(LAN),
Data centers,
Telecommunications,
Electro-medical equipment
| Model power | ZGD330 10-200KVA | |||||||||||
| 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA | ||
| Capacity | 8KW | 12 KW | 16 KW | 24 KW | 32 KW | 48 KW | 64 KW | 80 KW | 96KW | 128 KW | 160 KW | |
| Input | ||||||||||||
| Rated voltage | 380/400/415 Vac three-phase | |||||||||||
| Voltage range | ±20% | |||||||||||
| Frequency range | 45-65Hz | |||||||||||
| Power factor | >0.92with harmonic filter | |||||||||||
| Current harmonic distortion | <5%with harmonic filter | |||||||||||
| Soft Start | 0-100% in10" | |||||||||||
| Bypass Input | ||||||||||||
| Rated voltage | 380/400/415 Vac three-phase | |||||||||||
| Permitted voltage range | ±15%(selectable from ±10% to ±25% from front panel) | |||||||||||
| Rated frequency | 50/60Hz | |||||||||||
| Permitted frequency range | ±2%(selectable from ±1% to ±5% from front panel) | |||||||||||
| Standard features | Back Feed protection; split bypass line | |||||||||||
| Batteries | ||||||||||||
| Type | Maintenance-free lead-acid VRLA AGM / GEL;NICd | |||||||||||
| Battery voltage | 384VDC | 480VDC | ||||||||||
| Maximum recharge current(A) | 0.2×C10 | |||||||||||
| AC ripple voltage | <1% | |||||||||||
| Inverter Output | ||||||||||||
| Number of phases | 3+N | |||||||||||
| Rated voltage(V) | 380Vac | |||||||||||
| Regulation of the output voltage | 380~424Vac phase/neutral(from control panel) | |||||||||||
| Crest factor (Ipeak / Irms) | 3:1 | |||||||||||
| Static stability | ±1% | |||||||||||
| Dynamic stability | ±5% | |||||||||||
| Frequency | 50/60Hz configurable | |||||||||||
| Overload | 110% 125% 150% of the rated current for 5h/10'/1' | |||||||||||
| Frequency stability | ±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present | |||||||||||
| Remote signaling | Volt free contacts | |||||||||||
| Remote controls | EPO and Bypass | |||||||||||
| Communication | RS232 + romote contacts | |||||||||||
| Operation temperature | 0ºC/ + 40ºC | |||||||||||
| Relative humidity | <95% non condensing | |||||||||||
| Noise | 54dBA at 1m | 50-65dBA at 1m | ||||||||||
| Protection degree | IP20 | |||||||||||
| Efficiency smart mode | up to 98% | |||||||||||
| Compliance | Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC) | |||||||||||
