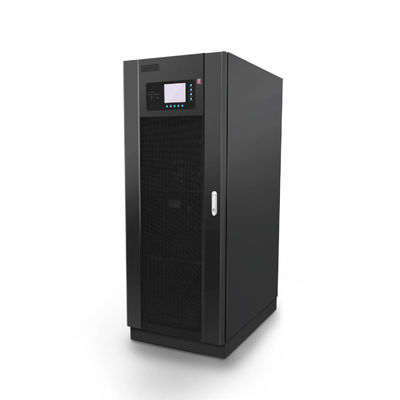

200KVA Modular Low Frequency Online UPS 3 Phases Uninterruptible Power Supply
Product Details:
| Place of Origin: | China |
| Brand Name: | ZGDUPS |
| Certification: | CE |
|
Detail Information |
|||
| Rated Voltage: | 380/400/415 Vac Three-phase | Frequency Range: | 45-65Hz |
|---|---|---|---|
| Protection Degree: | IP20 | Efficiency Smart Mode: | Up To 98% |
| Capacity: | 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW | Power: | 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA |
| High Light: | 200KVA Low Frequency Online UPS,Uninterruptible Low Frequency Online UPS,Uninterruptible 3 Phase Online UPS |
||
Product Description
150KVA Modular UPS Low Frequency UPS Online 3 Phases Uninterruptible Power Supply Ups
High intelligence and reliable power supply:
ZGD330 provides maximum protection for vital mission-critical networks, security applications (electro- medical)and industrial applications thanks to its outstanding mechanical and electrical design.
The load is powered continuously by the inverter with a filtered, stabilized and regulated sine wave supply. The input and output EMI filters considerably increase the immunity of the load to mains disturbances and surges.
The ZGD330 uses on-line double conversion technology (VFI) with isolation transformer on the inverter output.
The ZGD330 is supplied with Watch & Save 3000 software as standard and can be remotely monitored
using the Power Net Guard system from anywhere in the world. Additional battery extension packs allow the standard battery routine to be extended up to several hours.
Minimum impact on supplies easy sources:
Input current distortion <4% for the ZGD330 with filter with sinusoidal absorption to remove the risk of resonance with other input supply users or phase shift capacitor sets. The absorbed current distortion is independent of input supply parameters such as impedance. This enable ZGD330 to deliver maximum performance levels regardless of the installation environment. With these input features ZGD330 can achieve significant savings in terms of sizing and power supply sources isolation transformers and generators over less sophisticated power systems.
Advance communication
Compatible with TeleNetGuard for remote maintenance; Advanced, multi-platform communication for all operation systems and network environments: Watch & Save 3000 monitoring and shut-down software included, with SNMP agent, for Windows 2008, Vista,2003, XP; Mac OS X, Linux, Novell and most popular Unix operating systems;
The UPS is supplied with a cable for direct connection to the PC(Plug and Play); RS232 double Serial port; Installation slot for an Emergency Power Off (EPO) interface to allow the UPS to be switched off remotely in an emergency; Generator interface: enables resynchronization of the UPS output from a generator supply which may be subject to phase and frequency variations. The interface also enables more economic use of the battery charge.
