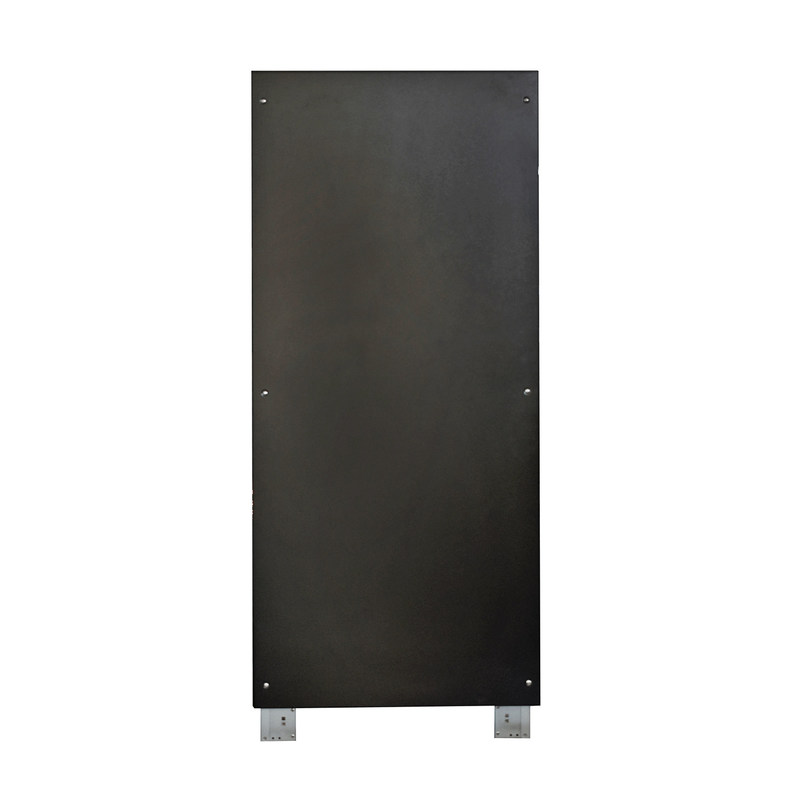

380V / 400V / 415V 80KVA Low Frequency 3 Phase Online UPS For Data Centers

380V / 400V / 415V 80KVA Low Frequency 3 Phase Online UPS For Data Centers

Product Details:

Place of Origin: China
Brand Name: ZGDUPS
Certification: CE
Get Best Price Contact Now

Detail Information

Rated Voltage: 380/400/415 Vac Three-phase Frequency Range: 45-65Hz
Protection Degree: IP20 Efficiency Smart Mode: Up To 98%
Capacity: 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW Power: 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA
High Light:

80KVA 3 Phase Online UPS

,

Data Centers 3 Phase Online UPS

,

415VAC Low Frequency Online UPS

Product Description

80KVA Low Frequency On-Line UPS 3 Phases Ups 380V/400V/415V Application Data Centers

ZGD330 provides maximum protection for vital mission-critical networks, security applications (electro- medical)and industrial applications thanks to its outstanding mechanical and electrical design.
The load is powered continuously by the inverter with a filtered, stabilized and regulated sine wave supply.

The input and output EMI filters considerably increase the immunity of the load to mains disturbances and surges.
The ZGD330 uses on-line double conversion technology (VFI) with isolation transformer on the inverter output.
The ZGD330 is supplied with Watch & Save 3000 software as standard and can be remotely monitored using the Power Net Guard system from anywhere in the world. Additional battery extension packs allow the standard battery routine to be extended up to several hours.



Application:
Servers,
Local area Network(LAN),
Data centers,
Telecommunications,
Electro-medical equipment



Model power ZGD330 10-200KVA
10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA
Capacity 8KW 12 KW 16 KW 24 KW 32 KW 48 KW 64 KW 80 KW 96KW 128 KW 160 KW
Input
Rated voltage 380/400/415 Vac three-phase
Voltage range ±20%
Frequency range 45-65Hz
Power factor >0.92with harmonic filter
Current harmonic distortion <5%with harmonic filter
Soft Start 0-100% in10"
Bypass Input
Rated voltage 380/400/415 Vac three-phase
Permitted voltage range ±15%(selectable from ±10% to ±25% from front panel)
Rated frequency 50/60Hz
Permitted frequency range ±2%(selectable from ±1% to ±5% from front panel)
Standard features Back Feed protection; split bypass line
Batteries
Type Maintenance-free lead-acid VRLA AGM / GEL;NICd
Battery voltage 384VDC 480VDC
Maximum recharge current(A) 0.2×C10
AC ripple voltage <1%
Inverter Output
Number of phases 3+N
Rated voltage(V) 380Vac
Regulation of the output voltage 380~424Vac phase/neutral(from control panel)
Crest factor (Ipeak / Irms) 3:1
Static stability ±1%
Dynamic stability ±5%
Frequency 50/60Hz configurable
Overload 110% 125% 150% of the rated current for 5h/10'/1'
Frequency stability ±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
Remote signaling Volt free contacts
Remote controls EPO and Bypass
Communication RS232 + romote contacts
Operation temperature 0ºC/ + 40ºC
Relative humidity <95% non condensing
Noise 54dBA at 1m 50-65dBA at 1m
Protection degree IP20
Efficiency smart mode up to 98%
Compliance Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
