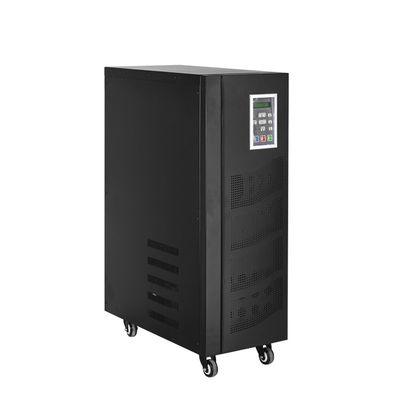

LCD Display 380VAC 10 Kva Online Ups Elevator Ups System 3 Phase In 1 Phase Out
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Certification: | CE |
| Model Number: | ZGD3110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $600.00/Sets 1-9 Sets |
| Delivery Time: | 7~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Output Voltage: | 220/200/230/240Vac | Protection: | Short Circuit,Unbalanced Loads,Overcurrent |
|---|---|---|---|
| Application: | Security / Monitoring / Alarm,Telecommunications | Phase: | Single Phase Or Three Phases / OPTIONAL |
| Type: | On-line,Low Frequency Online | Product Name: | Online Low Frequency Transformer Based UPS |
| Display: | LCD Display + LED Indictor | Capacity: | 10KVA |
| Input Voltage: | 380VAC | Transfer Time: | Zero Conversion |
| High Light: | 380VAC 10 Kva Online Ups,380VAC Elevator Ups System,10 Kva Elevator Ups System |
||
Product Description
LCD Display Low Frequency Online 3 Phase In 1 Phase Out 10KVA Ups Power For Elevator
ZGD3110 series are high-performance,sine wave UPS,specially designed for data center, network computer room, intelligent precision equipment. With high-reliability they provide important power protection for Financial, Communications, Insurance, Taxation, Military, Securities, Energy , Education, Government, Manufacturing, Business, and other industry.
ZGD3110 series are true on-line,double conversion UPS, using many international advanced technologies, such as advanced IGBT power components, high performance SPWM inverter and multi-mode intelligent battery management, as well as power management software. They are Cost-effective with good user base.
Specification
| Model | ZGD3110 | |||||||||
| Capacity | 10KVA | |||||||||
| AC Input | ||||||||||
| Voltage | 3-phase 380VAC±20% | |||||||||
| Frequency | 50(60) Hz ±5% | |||||||||
| Max current | 16A | |||||||||
| AC Output | ||||||||||
| Voltage | Single phase 220VAC | |||||||||
| Frequency | 50(60) Hz | |||||||||
| Voltage range | ±1% | |||||||||
| Frequency range | ±0.5% (when mains supply failure) | |||||||||
| Wave form | SPWM pure sine wave | |||||||||
| Power factor | 0.8(lag) | |||||||||
| THD | <3%(linear load) | |||||||||
| Transient response | Voltage change ≤4%(100% load into or out ) | |||||||||
| Battery | ||||||||||
| Voltage | 192VDC | |||||||||
| Type | Sealed lead acid, maintenance free | |||||||||
| Charge time | 90% capacity after 8-10 hours | |||||||||
| Protection Settings inside | ||||||||||
| Battery | Automatically switch off UPS while battery low-voltage; | |||||||||
| Restarting while mains supply resume; Small circuit breaker protection | ||||||||||
| Over-load | Automatically switch to bypass in 60 seconds when overload 120%-150% ; Automatically resume when load become normal | |||||||||
| Over-temperature | Automatically switch to bypass when temperature ＞85℃ inside UPS | |||||||||
| Output short circuit | Current limit, turn off automatically, Small circuit breaker protection | |||||||||
| UPS abnormal | Automatically switch to bypass | |||||||||
| Clutter filter | 10~100KHz at 40dB; 100KHz~100MHz at 70dB | |||||||||
| Control panel | ||||||||||
| LCD panel | Working mode, I/ O voltage, I/ O frequency, Battery voltage, Output power percentage, Inverter temperature | |||||||||
| UPS status indicator light | Mains mode；battery mode；inverter mode；bypass mode；UPS abnormal | |||||||||
| Communication | RS232 interface; external SNMP adaptor (optional) | |||||||||
| Environment | ||||||||||
| Temperature | 0~40℃ | |||||||||
| Humidity | 20~90% non-condensing | |||||||||
| Altitude | <1000m(rated power reduces 5% for each additional altitude 500m) | |||||||||
| Noise | <58dB (1m) | |||||||||
| Appearance | ||||||||||
| Method of connecting wire | Terminal blocks | |||||||||
