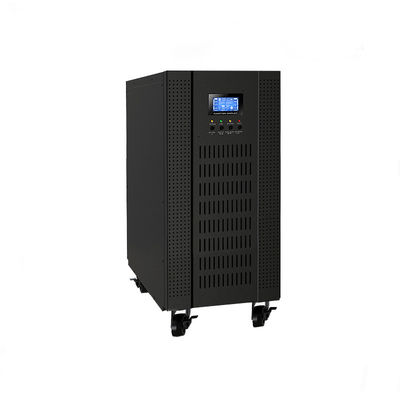

High Frequency Online UPS 30KVA 24KW With External Batteries Backup Power
Product Details:
| Place of Origin: | China |
| Brand Name: | ZGD |
| Model Number: | ZGD-S30K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $10.00 - $800.00/Sets |
| Packaging Details: | Carton Box |
| Delivery Time: | 15-30 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Protection: | Lightning | Weight: | 64kg |
|---|---|---|---|
| Type: | On-line | Application: | COMPUTER |
| Product Name: | Online UPS Systems | Capacity: | 30KVA |
| Wave Form: | Pure Sine Wave | Battery Type: | Lead Acid Battery |
| Color: | Black | Certificate: | CE,ULRohs,GS,TUV,FC |
| Input Voltage: | 190-520 VAC | Display: | LCD |
| Name: | High Frequency Ups Power | Products: | 30KVA Three Phase Input Single-phase Output UPS |
| Port: | Shenzhen | ||
| High Light: | High Frequency Online UPS 30KVA,High Frequency Online UPS 24KW,30kva online ups 24KW |
||
Product Description
High Frequency Online UPS 10KVA Three Phase Input Single-phase Output UPS For Medical Appliance
True double-conversion
DSP technology guarantees high performance
Output power factor 0.8
Wide input voltage range
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving (ECO)
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Optional maintenance bypass switch
| MODEL | ZGD 31 30K(L) | |
| PHASE | 3 phase in / 1 phase out | |
| CAPACITY | 30000 VA / 24000 W | |
| INPUT | ||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | |
| Voltage Range | 190-520 VAC (3-phase) @ 50% load 305-520 VAC (3-phase) @ 100% load |
|
| Frequency Range | 46~54 Hz or 56~64Hz | |
| Power Factor | ≥ 0.8 @ 100% | |
| OUTPUT | ||
| Output Voltage | 208/220/230/240VAC | |
| AC Voltage Regulation (Batt. Mode) | ± 1% | |
| Frequency Range | 46~54Hz or 56~64Hz | |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.2 Hz or 60 Hz ± 0.2 Hz | |
| Current Crest Ratio | 3:1 (max.) | |
| Harmonic Distortion | ≤ 3 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load) | |
| Transfer Time | AC Mode to Batt. Mode | zero |
| Inverter to Bypass | zero | |
| Waveform (Batt. Mode) | Pure Sinewave | |
| EFFICIENCY | ||
| AC Mode | 90% | |
| Battery Mode | 88% | |
| BATTERY | ||
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 3*20 pcs | |
| Typical Recharge Time | 9 hours recover to 90% capacity | |
| Charging Current (max.) | 1A Default, 1A/2A/4A/6A (Adjustable) | |
| Charging Voltage | 273 VDC ± 1% | |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 18/20 ajustable | |
| Charging Current (max.) | 2A Default, 1A/2A/4A/6A (Adjustable) | |
| Charging Voltage | 273 VDC ± 1% | |
| INDICATORS | ||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | |
| ALARM | ||
| Battery Mode | Sounding every 4 seconds | |
| Low Battery | Sounding every second | |
| Overload | Sounding twice every second | |
| Fault | Continuously sounding | |
| PHYSICAL | ||
| Standard Model | Dimension, D X W X H | 815*300*1000mm |
| Net Weight | 234kg | |
| Long-run Model | Dimension, D X W X H | 815*250*826mm |
| Net Weight | 64kg | |
| ENVIRONMENT | ||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | |
| Noise Level | Less than 58dB | |
| MANAGEMENT | ||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | |
| Optional SNMP | Power management from SNMP manager and web browser | |
| * L means long-run model | ||
| * Product specifications are subject to change without further notice | ||
