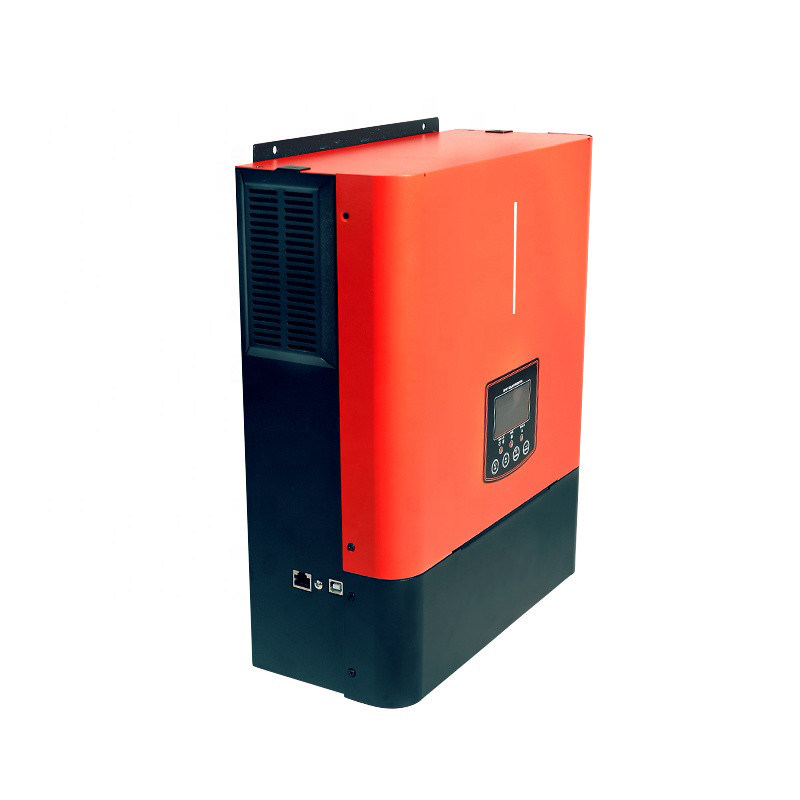

MPPT Power System 430VDC Solar Home Inverter Hybrid For Energy Storage

Product Description

MPPT Power System Solar Home Inverter Hybrid For Energy Storage

Specification

Model NKH-1.5KW
Rated Power 1500W
System DC voltage 230VAC
Monitoring Option Wifi or Gprs
AC Voltage 230VAC±5%
Surge Power 3000VA
Peak Eficiency 94%
Tansfer Time 10ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Max. PV Array Open Circuit Voltage 450VDC
Max. PV Array Power 2000W
Operating Voltage MPPT Range 80-430VDC
Battery Overcharge Protection 16VDC
Max. Solar Charge Current 80A
Max. AC Charge Current 80A
Max. Charge Current 80A
Dimension 100 x 270x 350mm
Net Weight 6.9KG
Communication Interface USB/RS232
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C-55*C
Storage -15*C-60°C

INTRODUCTION:
The NKH series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added, easy to install system that provides efficient power globally for every need. Combined with a 80A MPPT Solar Charge Controller, 80A AC charge Controller and Pure Sinewave Inverter. Efficiently works without battery.

MAIN FEATURES:

• High effciency pure sine wave inverter (PF=1).
• Wide PV input range (80Vdc-500Vdc) 80A MPPT SCC.
• 4 Intelligent 3 stage 80A AC battery charger.
• Intelligent functionality enables utility & solar input prioritization.
• Monitor, troubleshoot, or communication with USB/RS232.
• System configures quickly into compact, wall-mounted system.
• Enhance MPPT solar charge controller up to 2000 WATTS.
• Efficiently works without battery.
• Adaptable to Main Voltage / Generator Power.
• Built-in Anti Dust Kit.
