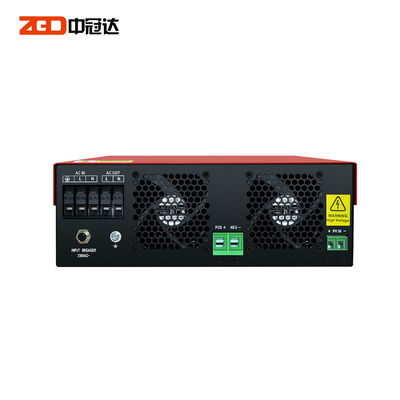

2.5KW Pure Sine Wave Single Phase Solar Inverter MPPT 230V AC DC
Product Details:
| Place of Origin: | China |
| Brand Name: | ZGDUPS |
| Model Number: | NKH-2.5KW |
Payment & Shipping Terms:
| Price: | $320.00/pieces 1-9 pieces |
|---|---|
| Packaging Details: | one set in a box |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| System DC Voltage : | 230VAC | AC Voltage: | 230VAC ± 5% |
|---|---|---|---|
| Rated Power : | 2500W | Humidity : | 5% To 95% Relative Humidity (Non-condensing) |
| Operating Temperature : | 0°C-55*C | Storage : | -15*C-60°C |
| High Light: | 2.5KW Single Phase Solar Inverter,MPPT Single Phase Solar Inverter,230V Solar Home Inverter |
||
Product Description
2.5KW Pure Sine Wave Single Phase Solar Inverter MPPT 230V AC DC
MAIN FEATURES:
- High effciency pure sine wave inverter (PF=1).
- Wide PV input range (80Vdc-500Vdc) 80A MPPT SCC.
- 4 Intelligent 3 stage 80A AC battery charger.
- Intelligent functionality enables utility & solar input prioritization.
- Monitor, troubleshoot, or communication with USB/RS232.
- System configures quickly into compact, wall-mounted system.
- Enhance MPPT solar charge controller up to 3000 WATTS.
- Efficiently works without battery.
Specification:
Model NKH-2.5KW
Rated Power 2500W
System DC voltage 230VAC
Monitoring Option Wifi or Gprs
AC Voltage 230VAC±5%
Surge Power 5000VA
Peak Eficiency 94%
Tansfer Time 10ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Max. PV Array Open Circuit Voltage 450VDC
Max. PV Array Power 3000W
Operating Voltage MPPT Range 80-430VDC
Battery Overcharge Protection 31VDC
Max. Solar Charge Current 80A
Max. AC Charge Current 80A
Max. Charge Current 80A
Dimension 100 x 270x 350mm
Net Weight 7.2KG
Communication Interface USB/RS232
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C-55*C
Storage -15*C-60°C
INTRODUCTION:
The NKH series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added, easy to install system that provides efficient power globally for every need. Combined with a 80A MPPT Solar Charge Controller, 80A AC charge Controller and Pure Sinewave Inverter. Efficiently works without battery.
