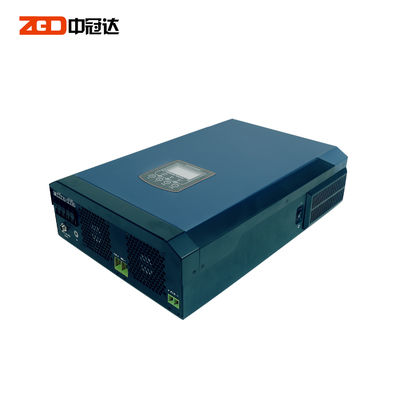

94% High Efficiency 5.2KW Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid
Product Details:
| Place of Origin: | China |
| Brand Name: | ZGDUPS |
| Model Number: | NKH-5.2KW |
Payment & Shipping Terms:
| Price: | $320.00/pieces 1-9 pieces |
|---|---|
| Packaging Details: | one set in a box |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Output Voltage: | 230VAC ± 5% | Weight: | 10.2KG |
|---|---|---|---|
| Display: | LCD Display | Protection: | Short Circuit Overload Overvolt Overtemp |
| Monitoring Option : | Wifi Or Gprs | Transfer Time: | 10 Ms (For Personal Computers) |
| High Light: | 94% High Efficiency Hybrid Solar Inverter,Hybrid Solar Inverter 5.2KW,MPPT Off Grid Solar Home Inverter |
||
Product Description
94% High Efficiency 5.2KW Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid
Specification
Max. PV Array Open Circuit Voltage 500VDC
Max. PV Array Power 6000W
Operating Voltage MPPT Range 120-450VDC
Battery Overcharge Protection 63VDC
Max. Solar Charge Current 100A
Max. AC Charge Current 100A
Max. Charge Current 100A
Dimension 100 x 300x 440mm
Net Weight 10.2KG
Communication Interface USB/RS232
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C-55*C
Storage -15*C-60°C
INTRODUCTION:
The NKH series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added, easy to install system that provides efficient power globally for every need. Combined with a 100A MPPT Solar Charge Controller, 80A AC charge Controller and Pure Sinewave Inverter. Efficiently works without battery.
