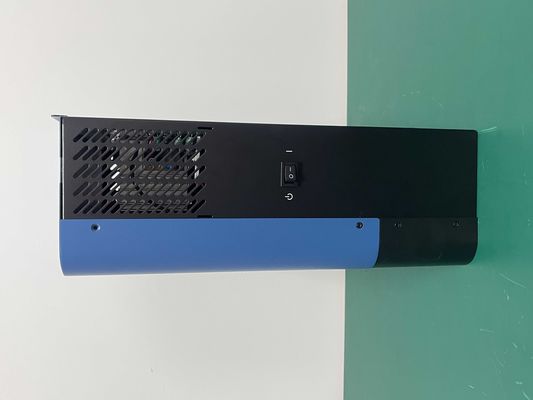

Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller

Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller

Product Details:

Brand Name: ZGD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $290 - $350/Pieces
Delivery Time: 10-15 work days
Payment Terms: L/C, Western Union, Western Union, T/T
Get Best Price Contact Now

Detail Information

Output Voltage: 230VAC ± 5% Ac Frequency Range: 50/60HZ
Display: LCD Display Output Current: 80A
Inverter Type: Offgrid Inverter Dimensions: 100 X 300 X 440mm
High Light:

3.2kva Off Grid Solar Inverter

,

LCD Display Off Grid Solar Inverter

,

3.2kw Off Grid Inverter

Product Description

Features
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 0
* Pure Sine wave inverter

* Configurable input voltage range for home appliances and personal computer via LCD setting

* Configurable battery charging current based on applications via LCD setting

* Configurable AC/Solar Charger/Controller priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload/Over temperature/ Short circuit protection

* MPPT Smart battery charger controller design for optimized battery performance

* Cold start function
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 1
Product Paramenters
Model
3200-24
RATED POWER
3200VA/3200W
INPUT

Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation(Batt. Mode)
230 VAC ± 5%
Surge Power
6400 VA
Efficiency(Peak) PV to INV.
97%
Efficiency(Peak) Battery to INV.
94%
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER

Battery Voltage
24 VDC
Floating Charge Voltage
27 VDC
Overcharge Protection
33 VDC
Maximum Charge Current
80 A
SOLAR CHARGER

Maximum PV Array Power
4000W
MPPT Range@Operating Voltage
120 - 450 VDC
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL

Dimension, D*W*H (mm)
100 * 300 * 440
Net Weight(kgs)
9
Communication interface
USB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT

Humidity
5% to 95% Relative Humidity ( Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C



What is Solar Inverter?

Solar inverters are used in photovoltaic (PV) systems to convert the DC voltage supplied by the solar cells into AC voltage, to adapt it to the voltage level of the power grid and feed it to the grid.

A solar inverter primarily plays the following roles in a solar power system:

* Conversion of DC to AC power.
* Maximization of energy production.
* Ensuring safe system operations.
* Improved grid assistance capabilities.
* Efficient tracking of power output.
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 2
Application
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 3
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 4
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 5
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 6
Pure Sine Wave 3.2kva 3.2kw Off Grid Solar Inverter With MPPT Controller 7
