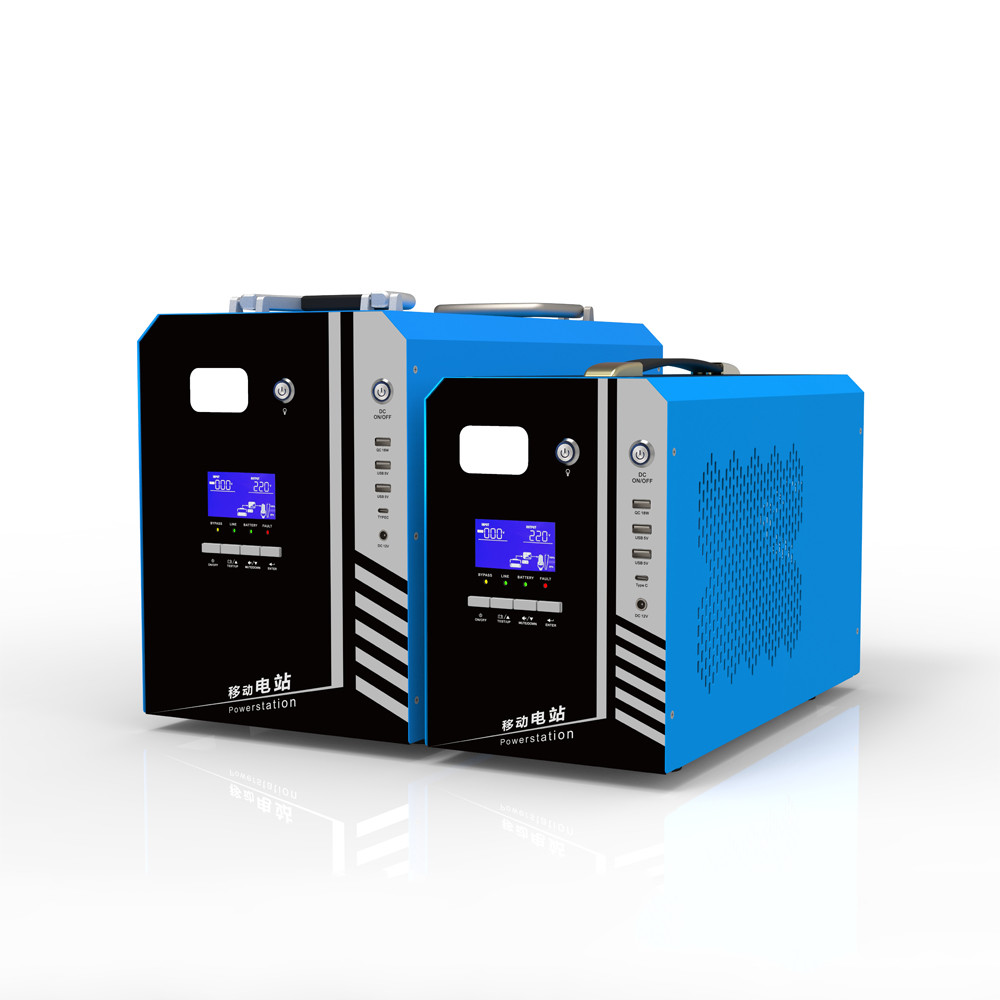

Double Conversion 94% Outdoor Portable Power Station Pure Sine Wave

Product Description

Double Conversion 94% Outdoor Portable Power Station Pure Sine Wave

Pure Sine Wave Home Ups Online Outdoor Portable Mobile Power Station

Outdoor Portable Power Station FEATURES:

1. Multifunction LCD Readout
The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.
2. Surge-protected Outlets
The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

3. DSP digital control technology, providing stable, reliable and pure sine power supply.
4. DSP core chip and open design architecture, highly costomizable, fit for automation and intelligent monitoring system, supporting SNMP, Ethernet, support mobile APP monitoring, web page monitoring, and PC remote centralized monitoring.

5. Zero conversion time
Dual conversion pure online architecture, zero conversion time of battery mains power supply mode switching, support fixed frequency output, effectively ensure the reliability of load power supply

Specification

model ST1000 ST2000 Rated output capacity 1000VA/800W 2000VA/1600W Ac input Input mode Single phase three wire (zero/fire line + ground)   rated voltage 208/220/230/240Vac   Rated frequency 50Hz/60HZ   Input voltage range 85~300VAC±5VAC   Input frequency range (40~70)±0.5Hz   Input power factor >0.99   bypass voltage 115~285VAC×(1±3%)   Input voltage range 9~18V   Maximum input current 10A battery Battery voltage 51.2V/16 series of lithium iron phosphate   Battery capacity 18AH/1000Wh 36AH/2000Wh   Backup time >45 minutes full load >90 minutes half load   Battery charge time Charge to 90% in 5 hours   AC output Output way Single-phase grounding output voltage 220/230/240Vac±2%(The inverter output) output frequency 50/60Hz±0.5% Dynamic voltage transients <7% Dynamic transient recovery time < 60ms waveform Pure sine wave Overload capacity 105 ~ 125% 1 min, 126 ~ 150% 30 SEC, >; 150% 100ms Peak output current coefficient 3:1 Conversion time The mains <-> Battery mode 0ms DC output 12V 5A USB charging port 5 A * USB 2.4 A two way USB QC fast charging 18W way USB PD Type C 24W way LED lighting 12V/3W Communication and monitoring function RS232,Optional: network monitoring card, USB card The audio noise <50dB

​







Packing & Delivery



FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,L/C,Western Union
