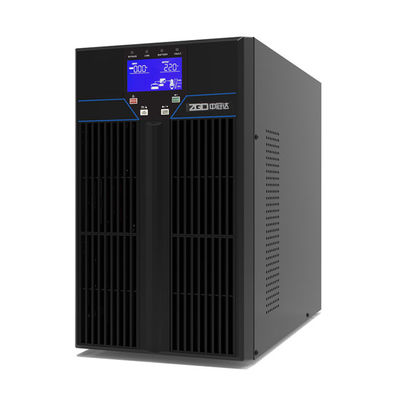

Pure Sine Wave 800W High Frequency Online UPS 1KVA Black Color
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Model Number: | ZGD-C1K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $258.00/Sets 1-9 Sets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3months-1year | Phase: | Single Phase |
|---|---|---|---|
| Protection: | Lightning | Weight: | 8.9kg |
| Type: | On-line | Application: | COMPUTER |
| Product Name: | Online UPS Systems | Capacity: | 1KVA |
| Wave Form: | Pure Sine Wave | Battery Type: | Lead Acid Battery |
| Color: | Black | Certificate: | CE,ULRohs,GS,TUV,FC |
| Input Voltage: | 100-240VAC | Display: | LCD |
| Name: | High Frequency Ups Power | Products: | Single Phase Online UPS |
| Port: | Shenzhen | ||
| High Light: | 800W High Frequency Online UPS,High Frequency Online UPS 1KVA,1KVA Online UPS Systems |
||
Product Description
High Frequency Online 1KVA 800W Single Phase Pure Sine Wave Ups
Detailed Images
True Double-Conversion Online Technology
True Sine-wave Output provides clean energy
High Reliability with Microprocessor Control
0,9 Output Power Factor
| Model | C1K | C1KS | C2K | C2KS | C3K | C3KS |
| Capacity | VA/W | 1kVA/800W | 2kVA/1.6kW | 3kVA/2.4kW | ||||||||
| Topology | Double Conversion Online UPS | |||||||||||
| Phase | Single Phase Input Single Phase Output | |||||||||||
| Mains Input | Wiring | L/N+PE | ||||||||||
| Rated Voltage | 208/220/230/240VAC | |||||||||||
| Voltage Range | 90~300VAC | |||||||||||
| Frequency Range | 40Hz-70Hz | |||||||||||
| Input Power Factor | ≥0.99 | |||||||||||
| AC Output | Wiring | L/N+PE | ||||||||||
| Output Voltage | 208/220/230/240VAC | |||||||||||
| Voltage Regulation | ±1% | |||||||||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | |||||||||||
| Waveform | Pure Sine Wave | |||||||||||
|
Distortion (THDV%) |
<2%(Linear Load) | |||||||||||
| <7%(None-Linear Load) | ||||||||||||
|
Over load capability |
1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
|||||||||||
| Efficiency | AC/AC Mode | 88% | 89% | 90% | ||||||||
| DC/AC Mode | 86% | 87% | 88% | |||||||||
|
Battery & Charge |
Rated Battery Voltage ① |
24VDC Internal |
36VDC External |
48VDC Internal |
72VDC External |
72VDC Internal |
96VDC External |
|||||
| Battery Capacity | 12V/7AH | External Battery Depends | 12V/7AH | External Battery Depends | 12V/7AH | External Battery Depends | ||||||
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load | |||||||||
| Charging Current |
Standard Model with Internal Battery:1A Long Backup Time Model :4A |
|||||||||||
| Physical | Chassis Style | RACK / Tower (separated) | ||||||||||
|
Tower Dimension ② |
1KS: 145(W)X220(H)x250(D)mm 1K, 2KS: 145(W)X220(H)x318(D)mm 2K:145(W)X220(H)x390(D)mm 3K/3KS: 190(W) x 318(H) x 368(D)mm |
|||||||||||
| Rack Dimension |
3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) |
|||||||||||
| Weight (kg) | 8.9 | 4.2 | 14 | 5.9 | 21.6 | 8.3 | ||||||
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | ||||||||||
|
Standards COMMUNICATION |
1. RS232 PORT 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown |
|||||||||||
| Optional Extension Card |
CMC MODBUS Card, USB Card, Relay Card (Needs assembly according to order request before shipping) |
|||||||||||
|
Operating Environment Endurance |
Temperature range | -10~50oC | ||||||||||
| Relative Humidity | 0-98%(Non-condensing) | |||||||||||
| Acoustics Noise | <55dB @ 1 meters | |||||||||||
