Three Phase 10000VA 380V Outdoor UPS System Double Conversion

Three Phase 10000VA 380V Outdoor UPS System Double Conversion

Product Details:

Place of Origin: SHENZHEN
Brand Name: ZGD
Certification: CE
Model Number: HWU110 10K

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: $2699.00/Pieces 1-19 Pieces
Packaging Details: Wood plywood packing
Delivery Time: 7~15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Protection: Overvoltage Output Voltage: 380V
Application: Security / Monitoring / Alarm,Telecommunications,corner Of The City Phase: Three Phase
Battery Type: Lead Acid Battery Product Name: China Outdoor UPS IP65with Air Conditions
Input Voltage: 380VAC+/-25% Wave Form: Pure Sine Wave
Frequency: 50HZ/60HZ Power Factor: 0.8,0.97
High Light:

380V Outdoor UPS System

,

10000VA Outdoor UPS System

,

10000VA outdoor rated ups

Product Description

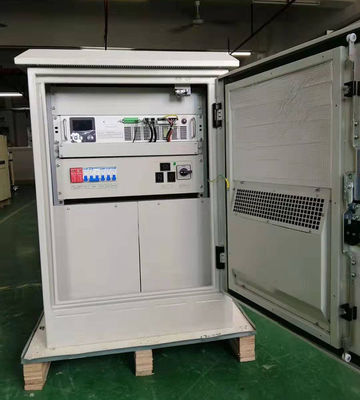

10KVA Three Phase Double Conversion Outdoor UPS System Online UPS Power









The outdoor UPS system has good protection function: such as heat insulation,dustproof, damp proof, waterproof etc.



● The advanced PFC technology, improves the input power factor close to utility, raises the power efficiency, removes the harmonic noise from UPS to utility, lowers UPS operational cost, it’s really a good environmental protection power supply.



● Smart management function. If main power blackout, ups will transfer to backup mode to supply loads. When battery voltage is low, ups would protect itself and shuts down. When the main power recovers, the UPS would check the main power itself, if the main power is also normal, ups would turn on automatically to supply loads; if main power is abnormal, UPS would just turn on charger to charge the battery until the main power is normal.



● Advanced wide input frequency technique, makes the input frequency range from 45Hz to 55Hz, compatible with generator under variable circumstance.



● DC start function, when there is no main power; UPS can be turned on by battery, to meet the user’s emergency needs. The cold start function is quite strong. UPS can be cold started on full load situation.

Specification
Model 1KVA 2KVA 3KVA 6KVA 10KVA
Range voltage 220/230/240VAC
Frequency 50Hz/62Hz
Input
Voltage range 115~295VAC(±3VAC) 176~297VAC(±3VAC)
Frequency Range 50Hz (46~54 Hz) ; 60Hz (56~64 Hz)
Soft Start 0~100% 5sec
Power factor 0.98
Output
Voltage Precision 220/230/240VAC(1±2%)AC
Frequency Precision 50Hz/62Hz±0.05Hz
Power factor 0.7/0.8(optional) standard 0.7
Wave Distortion Linear load<3% Non-linear load<6%
Overload capability Overload(110~150%)for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode
Crest Factor 3:01
Transfer time 0ms (AC to DC)
battery 36VDC 72VDC 96VDC 240VDC 240VDC
Charging current 4A/8A(optional) 4A/8A(optional) 4A/8A(optional) 4.2A 4.2A
Internal Battery Caoacity (38/65/80/100AH) optional
Panel display
LED Load level/Battery level ,Battery indicator,Utility power,Inverter ,Bypass,Overload ,Fault
Communications
Communications interface RS232 SNMP card(optional)
Work Environment
Temperature -40~55ºC
Humidity 0~95%(Non-condensing
Storage Temperature -25ºC~55ºC
Elevation <1500m
Physical Characteristics
Weight(KG)N.W 85 125 125 150 150
Dimensions:(WxDxH)mm 613*640*954 650*753*1227 650*753*1227 940*940*1770 940*940*17

Three Phase 10000VA 380V Outdoor UPS System Double Conversion 0Three Phase 10000VA 380V Outdoor UPS System Double Conversion 1Three Phase 10000VA 380V Outdoor UPS System Double Conversion 2Three Phase 10000VA 380V Outdoor UPS System Double Conversion 3Three Phase 10000VA 380V Outdoor UPS System Double Conversion 4Three Phase 10000VA 380V Outdoor UPS System Double Conversion 5Three Phase 10000VA 380V Outdoor UPS System Double Conversion 6Three Phase 10000VA 380V Outdoor UPS System Double Conversion 7Three Phase 10000VA 380V Outdoor UPS System Double Conversion 8Three Phase 10000VA 380V Outdoor UPS System Double Conversion 9Three Phase 10000VA 380V Outdoor UPS System Double Conversion 10​​



Certificate


Three Phase 10000VA 380V Outdoor UPS System Double Conversion 11

Packing & Delivery

Three Phase 10000VA 380V Outdoor UPS System Double Conversion 12

FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
