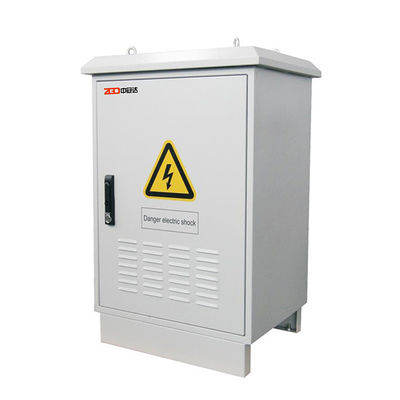

Single phase 220VAC Outdoor Rated UPS 3kva Online Ups With Inbuilt Battery
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | ZGD |
| Certification: | CE |
| Model Number: | HWU110 3K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $699.00/Pieces 1-19 Pieces |
| Packaging Details: | Wood plywood packing |
| Delivery Time: | 7~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Protection: | Overvoltage | Output Voltage: | 110V/120V/220V/230V |
|---|---|---|---|
| Application: | Security / Monitoring / Alarm,Telecommunications,corner Of The City | Phase: | Single Phase |
| Battery Type: | Lead Acid Battery | Product Name: | China Outdoor UPS IP65with Air Conditions |
| Input Voltage: | 220VAC/380VAC+/-25% | Wave Form: | Pure Sine Wave |
| Frequency: | 50HZ/60HZ | Power Factor: | 0.8,0.97 |
| Highlight: | Outdoor Rated UPS 3kva,220VAC Outdoor Rated UPS,3kva Online Ups With Inbuilt Battery |
||
Product Description
The outdoor UPS system has good protection function: such as heat insulation,dustproof, damp proof, waterproof etc.
● Lightning protection device, Surge protection device, according to conditions of outdoor UPS, it can effectively eliminate lightning.
● Intelligence air-cooled module, it is easy to maintain and replace. When the inside environment temperature is below 40℃, fans will stop working, thereby greatly prolong the service life of the fans.
● Intelligence heating module, when internal temperature is below 0℃, it starts heating module.
● Dry contact warning function:① UPS failure ② UPS Overload ③Utility failure ④Bttery low Voltage ⑤ Access Control alarm
Specification
| Model | 1KVA | 2KVA | 3KVA | 6KVA | 10KVA |
| Range voltage | 220/230/240VAC | ||||
| Frequency | 50Hz/62Hz | ||||
| Input | |||||
| Voltage range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) | |||
| Frequency Range | 50Hz (46~54 Hz) ; 60Hz (56~64 Hz) | ||||
| Soft Start | 0~100% 5sec | ||||
| Power factor | 0.98 | ||||
| Output | |||||
| Voltage Precision | 220/230/240VAC(1±2%)AC | ||||
| Frequency Precision | 50Hz/62Hz±0.05Hz | ||||
| Power factor | 0.7/0.8(optional) standard 0.7 | ||||
| Wave Distortion | Linear load<3% Non-linear load<6% | ||||
| Overload capability | Overload(110~150%)for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode | ||||
| Crest Factor | 3:01 | ||||
| Transfer time | 0ms (AC to DC) | ||||
| battery | 36VDC | 72VDC | 96VDC | 240VDC | 240VDC |
| Charging current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Caoacity | (38/65/80/100AH) optional | ||||
| Panel display | |||||
| LED | Load level/Battery level ,Battery indicator,Utility power,Inverter ,Bypass,Overload ,Fault | ||||
| Communications | |||||
| Communications interface | RS232 SNMP card(optional) | ||||
| Work Environment | |||||
| Temperature | -40~55ºC | ||||
| Humidity | 0~95%(Non-condensing | ||||
| Storage Temperature | -25ºC~55ºC | ||||
| Elevation | <1500m | ||||
| Physical Characteristics | |||||
| Weight(KG)N.W | 85 | 125 | 125 | 150 | 150 |
| Dimensions:(WxDxH)mm | 613*640*954 | 650*753*1227 | 650*753*1227 | 940*940*1770 | 940*940*17 |
