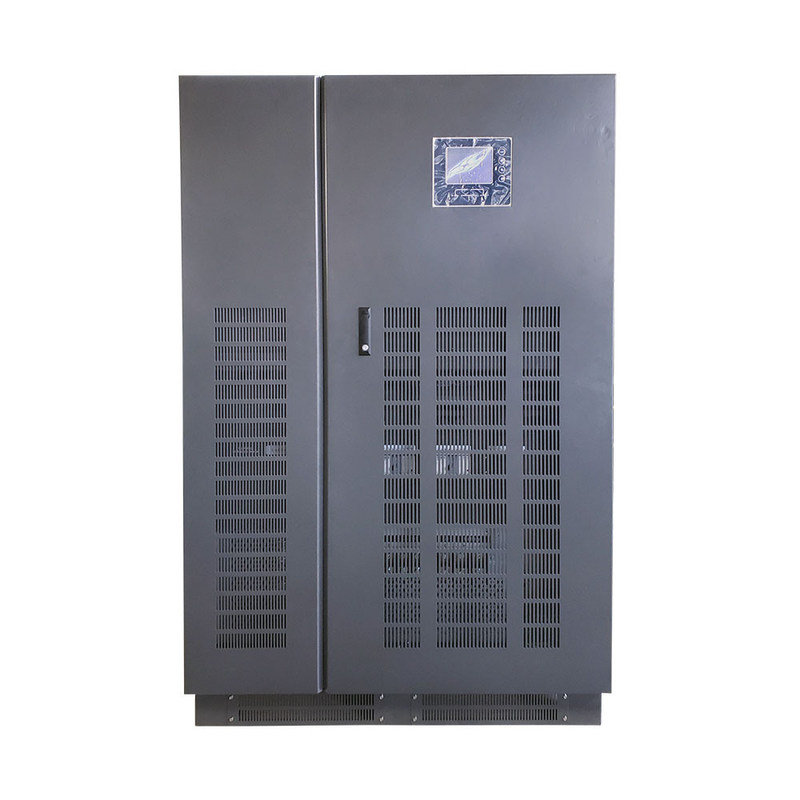

192v 220v 240v 384v 100kw Solar Inverter / Solar Panel DC To AC Inverter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Model Number: | TP-100KW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $90.00 - $1,120.00/Pieces |
| Packaging Details: | Carton Box |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Input Voltage: | AC220V/AC380V | Output Voltage: | AC220V/AC380V |
|---|---|---|---|
| Type: | DC/AC Inverters | Output Type: | Three Phase |
| Output Current: | Load | Output Frequency: | 50/60Hz |
| Weight: | 950kg | Product Name: | 100KW Off Grid DC To AC Solar Power Inverter 3 Phase |
| Output Waveform: | Sine Wave | Color: | Black/white |
| Inverter Efficiency: | >95% | Application: | Industry,Family,School,Street |
| High Light: | 384v 100kw Solar Inverter,240v 100kw Solar Inverter,384v Solar Panel DC To AC Inverter |
||
Product Description
Three Phase Low Frequency Solar Power Inverter 100KW 192v 220v 240v 384v Off Grid DC to AC
Product Features
The product can provide reliable power supply protection for large data centers,network computer rooms as well as the electric power links of fields such as manufacturing,traffic and energy to meet the high reliability requirement of users for large-power inverters.
Based on the DSP accurate control technology and the double built-in MCUs,the product can output stable and pure sine waves and provide safe and reliable power supply protection for users.
Advanced working mode
Frequency tracking, phase-locking voltage stabilization, noise filtering and prevention of impact by fluctuation of the power grid realized in output of the inverter
The best power supply guarantee for the loading equipment of users contributed by a full digital vector control technology based on real-time processing by DSP, MCU and DDC
Efficient IGBT inversion technology
Good high-speed switching feature, large-voltage and large-current operating characteristics, and voltage drive of IGBT (The fifth-generation IGBT has a lower saturation voltage drop and higher operation efficiency and reliability.)
Well-adapted
A wide range of input frequency (45Hz-65Hz), which realizes stable operation of fuel generators
Great loading capacity
Suitability for industrial applications such as machine tools and wire cutters
Management function
Big Lcd, visualized display of operation statuses through flow charts, intelligent icon touch buttons, tabular data, event records, etc.
Visualization of parameters of the inverter by means of communication with a computer via a RS232/RS485 interface with help of intelligent monitoring software of the inverter
Reliable performance
A power-on test function for timely discovery elinination of potential hazards
High stability and reliability guaranteed by integration of functions including AC input overvoltage protection, AC input undervoltage protection, output overload protection, short circuit protection, overcurrent protection, bus overvoltage protection, overheat protection, fan fault protection, auxiliary power supply fault protection, battery undervoltage warning protection, battery overcharge protection, etc.
Make the battery life longer and reduce burden by intelligent bettery management
Proper adjustment of the iinput parameters according to the input power supply conditions.
| Model-TP | 10KW | 20KW | 30KW | 40KW | 60KW | 80KW | 100KW | 150KW | 200KW |
| Rated capacity | 10kW | 20kW | 30kW | 40kW | 60kW | 80kW | 100kW | 150kW | 200kW |
| Operation mode and principle |
PWN (pulse width modulation)based on DSP accurate control technology and double built-in MCUs complete isolation of the output power supply | ||||||||
| AC input phase number | three-phase + N+G | ||||||||
| AC input voltage | AC 220V/AC 382V±20% | ||||||||
| AC input frequency | 50hz/60hz±5% | ||||||||
| DC voltage | DC 192V/DC 220V/DC 240V/DC 384V(16 to 32 pieces of 12V batteries) | ||||||||
| Floating battery | 13.6V of each battery*battery quantity (13.6V*16 batteries=217.6) | ||||||||
| Cut-off voltage | 10.8v of each battery *battery quantity (10.8V*16 batteries=172.8V) | ||||||||
| Phase number | three-phase +N+G | ||||||||
| AC output voltage | AC 220V/AC 380V±1% (steady load) | ||||||||
| AC output frequency | 50hz/60hz±5% (main supply) 50hz±0.01% | ||||||||
| Efficiency | ≥95% (load:100%) | ||||||||
| output waveform | sine wave | ||||||||
| THD | linear load:<3%.non-linear load:<5% | ||||||||
| Dynamic load voltage transient | <±5%(jump from 0 to 100%) | ||||||||
| Instant recovery time | <10ms | ||||||||
| time of switching between the battery and the mains supply |
3s-5s | ||||||||
| Unbalanced voltage | <±3% <±1% (balanced load voltage)| | ||||||||
| Overload capacity | 120%,20s;>150%,100ms | ||||||||
| Operation efficiency | ≥95% (load: 100%) | ||||||||
| Computer communication interface | RS232/RS485(SNMP remote monitoring network adapter) | ||||||||
| Operating temperature | -10-40℃ | ||||||||
| Relative humidity | 0-90% (no condensation) | ||||||||
| Noise | 40-50dB | 50-60dB | 60-70dB | ||||||
