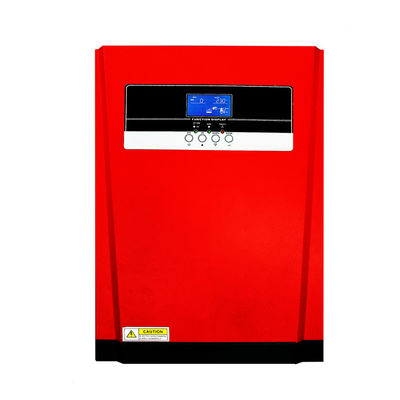

3000W ~ 5000W High Frequency Solar Inverter
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | ZGD |
Certification: | CE |
Model Number: | zgd~s3kw |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 sets |
---|---|
Price: | $380.00/Sets 1-9 Sets |
Packaging Details: | Carton packaging |
Delivery Time: | 7~15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 sets per month |
Detail Information |
|||
Product Name: | Solar Inverter | Output Waveform: | Pure Sine Ware |
---|---|---|---|
Rated Power: | 3KW~ 5KW | Input Voltage: | 220V |
Application: | Solar Power System Home | Warranty: | 1 Year |
Output Voltage: | 110V/120V/220V/230V/240V | Certificate: | CE ROHS |
Wave Form: | Modifid Sine Wave | Port: | Shengzhen |
Highlight: | 5000W High Frequency Solar Inverter,3000W High Frequency Solar Inverter,5000W high wattage power inverter |
Product Description
High Output 3KW ~ 5KW High Frequency Power Solar Inverter Reverse Control Integrated For Home
● Double CPU intelligent control technology, excellent performance;
● Power mode/energy-saving mode/battery mode can be set, flexible application;
● Intelligent fan control, safe and reliable;
● pure sinusoidal AC output, can adapt to various types of load;
● Wide input voltage range, high precision output, automatic voltage regulator function
● LCD real-time display of equipment parameters, running state at a glance;
● Output overload, short circuit protection, all kinds of automatic protection and alarm prompt;
● Intelligent MPPT solar controller, overcharge, overdischarge protection, current limit charging, multiple protection
● Power mode/energy-saving mode/battery mode can be set, flexible application;
● Intelligent fan control, safe and reliable;
● pure sinusoidal AC output, can adapt to various types of load;
● Wide input voltage range, high precision output, automatic voltage regulator function
● LCD real-time display of equipment parameters, running state at a glance;
● Output overload, short circuit protection, all kinds of automatic protection and alarm prompt;
● Intelligent MPPT solar controller, overcharge, overdischarge protection, current limit charging, multiple protection
Specification
INVERTER MODEL | 3KW | 5KW |
Rated Output Power | 3KW | 5KW |
Output Voltage Waveform | Pure Sine Wave | |
Output Voltage Regulation | 230Vac±5% | |
Output Frequency | 50Hz | |
Peak Efficiency | 93% | |
Overload Protection | 5s@≥150% load; 10s@110%~150% load | |
Surge Capacity | 2* rated power for 5 seconds | |
Nominal DC Input Voltage | 24Vdc | 48Vdc |
Cold Start Voltage | 23.0Vdc | 46.0Vdc |
Low DC Warning Voltage | ||
@ load < 50% | 23.0Vdc | 46.0Vdc |
@ load ≥ 50% | 22.0Vdc | 44.0Vdc |
Low DC Warning Return Voltage | ||
@ load < 50% | 23.5Vdc | 47.0Vdc |
@ load ≥ 50% | 23.0Vdc | 46.0Vdc |
Low DC Cut-off Voltage | ||
@ load < 50% | 21.5Vdc | 43.0Vdc |
@ load ≥ 50% | 21.0Vdc | 42.0Vdc |
High DC Recovery Voltage | 32Vdc | 62Vdc |
High DC Cut-off Voltage | 33Vdc | 63Vdc |
No Load Power Consumption | <35W |
INVERTER MODEL | 3KW | 5KW |
Input Voltage Waveform | Sinusoidal (utility or generator) | |
Nominal Input Voltage | 230Vac | |
Low Loss Voltage | 170Vac±7V (UPS); | |
90Vac±7V (Appliances) | ||
Low Loss Return Voltage | 180Vac±7V (UPS); | |
100Vac±7V (Appliances) | ||
High Loss Voltage | 280Vac±7V | |
High Loss Return Voltage | 270Vac±7V | |
Max AC Input Voltage | 300Vac | |
Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |
Low Loss Frequency | 40±1Hz | |
Low Loss Return Frequency | 42±1Hz | |
High Loss Frequency | 65±1Hz | |
High Loss Return Frequency | 63±1Hz | |
Output Short Circuit Protection | Circuit Breaker | |
Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | |
Transfer Time | 10ms typical (UPS); | |
20ms typical (Appliances) |
