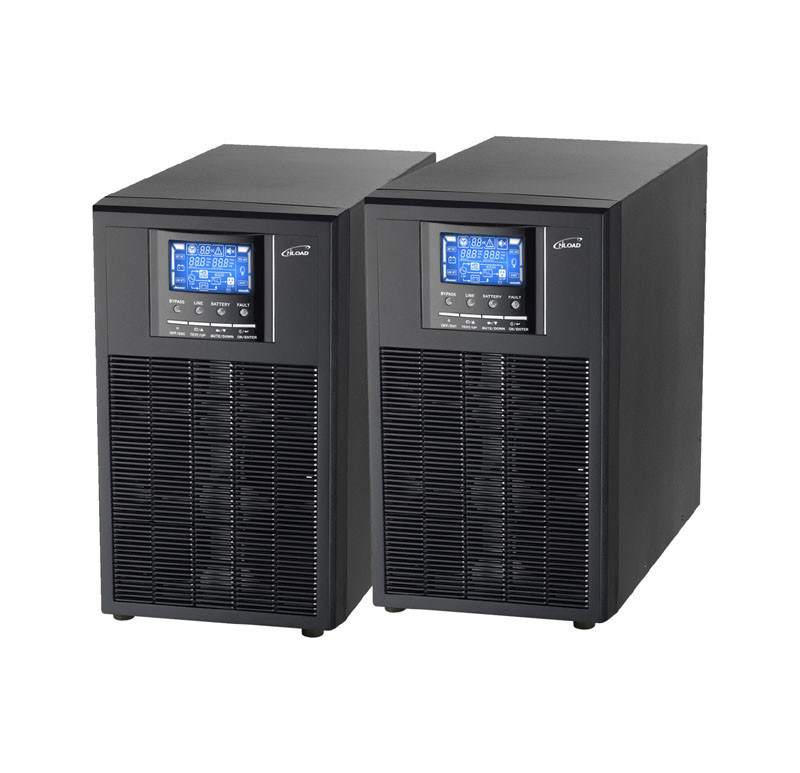

1KVA 2KVA 3KVA Online High Frequency Ups

1KVA 2KVA 3KVA Online High Frequency Ups

Product Details:

Place of Origin: Guangdong, China
Brand Name: ZGD
Model Number: C1KS-C3KS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $115.00/Sets 1-9 Sets
Delivery Time: 10-15 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10000 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Warranty: 1year Phase: Single Phase
Protection: Lightning Weight: 4.6KG-8kg
Type: On-line Application: COMPUTER
Product Name: Uninterrupted Power System Capacity: 1KVA,2KVA,3KVA
Battery Type: Sealed Lead Acid Battery Wave Form: Pure Sine Wave
Color: Black Certificate: CE/ROSH/GS/TUV/MSDS
Display: LCD Transfer Time: 0ms
Input Voltage: 200/208/220/230/240VAC Output Voltage: 200/208/220/230/240VAC
Port: Shenzhen Or Guangzhou
High Light:

3KVA Online High Frequency Ups

,

2KVA Online High Frequency Ups

,

1KVA Online High Frequency Ups

Product Description

High Frequency Online UPS System 1KVA 2KVA 3KVA Single Phase Zero Conversion
Microprocessor control ensures reliability
Input power factor correction
Output power factor up to 0.8
Wide power input range (110V~300V)
Efficient frequency conversion mode
Compatible generator
The optional exquisite SNMP card can monitor perfectly alone or together with USB and RS232
Through the display simple operation control, and comprehensive display monitoring UPS status

MODEL ZGD-1K (L) ZGD-2K (L) ZGD-3K (L)
PHASE Single phase with ground
CAPACITY 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W
INPUT
Nominal Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range 55-145 VAC or 110-300 VAC
Frequency Range 40Hz ~ 70 Hz
Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation ± 1%
Frequency Range
(Synchronized Range)
47~ 53 Hz or 57 ~ 63 Hz
Frequency Range
(Batt. Mode)
50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio 3:1
Harmonic Distortion ≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load)
Transfer Time AC to DC Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
To AC Mode 88% 89% 90%
To Battery Mode 83% 87% 88%
BATTERY
Standard model machine Battery type 12V9AH
Quantity 2 4 6
Standard
charging time
4 hours charge to 90%
max charge current 1A
Charging voltage 27.3VDC±1% 82.1VDC±1%
Long-run Model Battery Type Depending on the capacity of external batteries
Numbers 2 or 3 4 or 6 or 8 6 or 8
Charging Current
(max.)
1.0A/2.0A/4.0A/6.0 A
Charging Voltage 41.0VDC ± 1% 82.1 VDC ±1% 109.4VDC ±1%
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continously sounding
PHYSICAL
Standard models Dimension 282*145*220 397*145*220 419*190*318
Net weiZGDt(kgs) 9.3 18.6 30
Long-run Model Dimension 282*145*220 397*145*220
Net WeiZGDt (kgs) 4.6 6.8 7.4
ENVIRONMENT
Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
*Long-run model is only available in 200/208/220/230/240VAC systems.
**Derate to 80% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 100/200/208VAC
* Product specifications are subject to change without further notice
