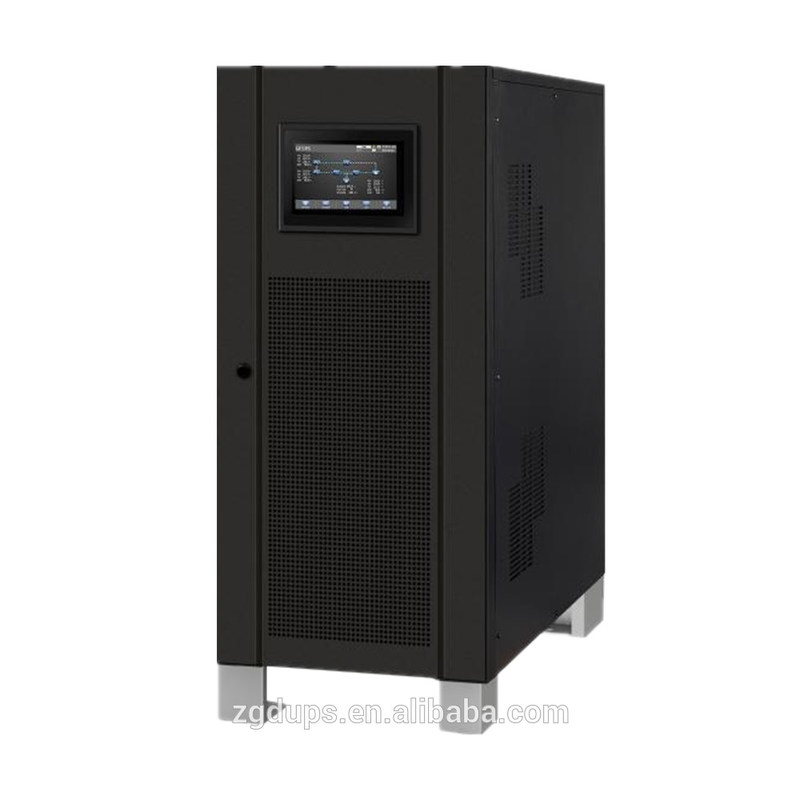

160KVA Low Frequency Online UPS 415V
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ZGD |
| Certification: | CE/ROSH/GS/TUV/MSDS |
| Model Number: | ZGD33160 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $7000.00/Sets 1-9 Sets |
| Packaging Details: | Splint wooden cases |
| Delivery Time: | 7~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Set/Sets per Day |
|
Detail Information |
|||
| Weight: | 760KG | Capacity: | 160KVA |
|---|---|---|---|
| Input Voltage: | 380V | Output Voltage: | 380V |
| Product Name: | Phase 0.8 Pf 20kva Low Frequency Online Wholesale Price Portable Ups | Display: | LCD Display + LED Indictor |
| Battery Type: | Sealed Lead Acid Maintenance Free | Transfer Time: | Zero Conversion |
| Frequency: | 50/.60hz | Technology: | CPU Control |
| Highlight: | Low Frequency Online UPS 415V,160KVA Low Frequency Online,160kva ups 415V |
||
Product Description
Hybrid Ups System Low Frequency Online UPS 160KVA Sine Wave 3 Phase 380V 400V 415V
Main Features:
Online double-conversion
DSP technology guarantees high reliability
True galvanic isolation transformer design
Control designed to withstand all kinds of loads
Intelligent battery management to prolong battery lifecycle
Redundant fan design and independent ventilation enhance durable operation under harsh environment
Adjustable battery numbers
Accept dual-mains input
Parallel operation with up to 4 units (option)
Variety of communication options available
Optional 7" touch LCD
Specification
| model | ZGD33 160K | |||||||||||
| capacity | 128KW | |||||||||||
| INPUT | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||||||
| Frequency | 50/60 Hz ± 10 % | |||||||||||
| INVERTER | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Precision | Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%) | |||||||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||||
| Max. Synchronisation Speed | ±1 Hz/s | |||||||||||
| Waveform | Pure Sinewave | |||||||||||
| Total Harmonic Distortion (THDv) | < 2% (Linear Load) ; < 5% (Non-linear Load) | |||||||||||
| Phase Displacement | 120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load) | |||||||||||
| Dynamic Recovery Time | 3 cycles at 98 % of the static value | |||||||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||||
| Admissible Crest Factor | 3:1 | |||||||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit | |||||||||||
| STATIC BYPASS | ||||||||||||
| Type | Solid state | |||||||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Activation Criterion | Microprocessor control | |||||||||||
| Transfer Time | Zero | |||||||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||||
| Transfer to Bypass | Immediate, for overloads above 160% | |||||||||||
| Retransfer | Automatic after alarm clear | |||||||||||
| BATTERY & CHARGER | ||||||||||||
| Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) | |||||||||||
| Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) | |||||||||||
| Charging Method | CC/CV | |||||||||||
| Charging Current | Default: 10A. Max. 40A | |||||||||||
| Charging Voltage | 432 VDC (Based on 32pcs batteries) | |||||||||||
